Truck Car Aircraft Furniture Train Retractable Inflatable Water Curtain Room Ovens Tan Paint Painting Spray Booth for Sale

Product Description

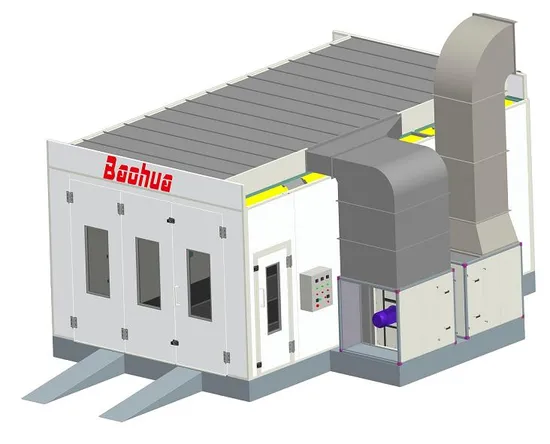

Product Description European style Electric heating spray booth with one 7.5kw intake fans and one 7.5kw exhaust fan Features 1. steel keel frame with 80kg crock wool : sound-proof and insulation .
2. thickening toughened glass : shock resistance , and heat resistance .
3.door hinge adopt high-strength steel . The strength of the bolt is: 12 level .
4.anti-rust durable and skid resistance.
5. basement: 350mm(height) , inside have 40mm lead wind board.
6.steel keel frame with 80kg crock wool ,equipped with spring pressure lock
7.Siemens electrical components
8.anti-explosion fan ,Large blade : Siemens high efficiency motor , German Reitz fan blade
9. with high strength steel plate with rock wool : sound-proof .
10.circuits of light :European design with exposed steel constitution ,simpler and easier installation of maintenance.
11. steel board with rock wool. With good temperature reservation
12.European design , unique air intake room , have good air intake flow .
13. with big air-admitting surface .
Specification

Outside dimensions	7000*5560*3610mm(L*W*H)
Internal Size	6900*4000*2810mm(L*W*H)
Gate size	3200 * 2700MM(W*H)
Safety door dimension(W*H)	700*2000mm
Voltage	380V(Can be customized)
total Power	47KW(With one 7.5kw intake fans and one 7.5kw Exhaust fan)

Details
Cabin System
50mm wall boards are all rock wool wall boards (good for environmental protection and thermal insulation),warranty:10 yeas
Wall board:adopts fire-resistance EPS(epispastics polystyrene) colorful steel insulation boards,50mm thick,compound construction,
Wall slab rock wool density 85kg,Fire and high temperature resistance
wall board :50mm thick metal plate gate,the view windows with aluminum alloy frame,solid structure and good appearance.
Basement:constructed with galvanized steel plate and anti-corrosion square steel frame.It's configured with 2 rows of painted
floor grids and 3 rows of anti-skid boards.Two ramps are made of anti-skid steel plates. Anti Circulation System
Large impeller fan, the air volume is 1/3 larger than ordinary fan, soundproof rock wool is attached around the fan, and the noise is low
Air-intake Fan:one pc 7.5kw Large impeller fan, real measured capacity is 30000m³
Exhaust fan:one pc 7.5kw Large impeller fan, real measured capacity is 30000m³(European style double fan)
Full load air speed:0.25-0.35m/s.Air recycling times:274times/h.Noisy:<=80db(a).
Generator cabinet is made of galvanized steel sheet with square tube frame.
The fan uses an external motor to drive an all-aluminum alloy large impeller, with large air volume and low noise Lighting System
The external lighting of the line will not block the air intake, which is convenient for the wiring line failureCeiling light:8 groups,each group with 4 pcs of LED lamps, 32pcs high-quality LED lamps
The LED lamps are special designed for spraying booth,high safety,environmental protection design,long service life,illumination fulfills the requirement of production.(67% energy saving compared with the common fluorescent lamp) Purification System
Dual filtering structure:the first prime filter is made of high-quality non textile cotton,which is installed at the intake
hose,can capture granules bigger than 5um,filtering rate reaches 98%.TSP<=1.4mg/m3. Heating System
Composed of 10 groups short wave infrared baking lamps. Each group includes 3 pcs of 1KW baking lamps.Left wall and
right wall 4 groups each.
Baking light box is a double door design,and the lights will be turned off automatically when you close it Electrical Control System
Composed of famous brand Zhengtai electrical components.
Lighting switch,Spray&Baking switch,temperature setting,time setting,2 groups baking,whole baking,emergency stop,failure alarm,over temperature alarm,timer.The whole working process can be settled at one time. Top convex setting
The top convex type is set, the lighting box is external (convenient for line maintenance), and the air intake will not be blocked by the lighting lamp, and the pressure is greater than ordinary models. ground grid height
Floor ground grid: 35cm height, 25cm height for ordinary models. The height of 35cm can effectively prevent enough space when the gas is pressed from top to bottom, and will not be bounced back, so the exhaust effect is better. Cases show

---
