Basic Info.
Front Interface
Top USB3, USB2.0, Type-C
Cable Management
Non Back Cable Management
Maximum Lenght of Graphics Card
>400mm
Cable Management Depth
25mm
Front Panel
Tempered Glass, Mesh
Left Side Panel
Tempered Glass
Right Side Panel
Metal Plate Panel with Dust Filter
Specification
(L)433*(W)210*(H)485mm
Production Capacity
400000PCS/Month
Packaging & Delivery
Package Size
56.20cm * 29.20cm * 50.60cm
Package Gross Weight
10.000kg
Product Description

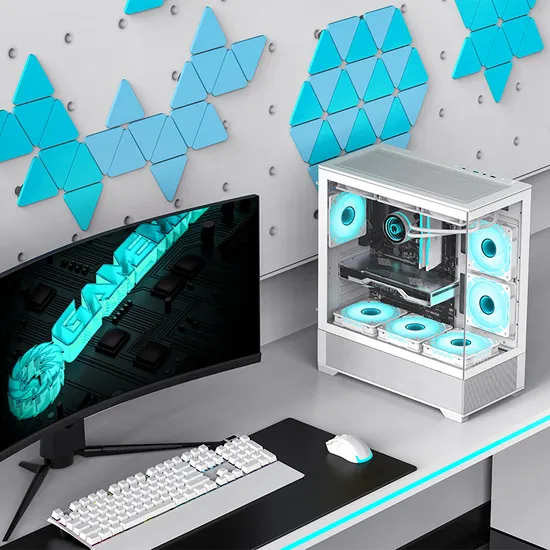

Product Description Vista Mid-tower PC ATX case - Aesthetic looks, airflow focus, easy installation, and ample room for large GPU and cable management. Good build quality computer case made of heavy-duty steel metal frame and 4.0mm tempered glass. Computer Case Focus on Cooling- The modular motherboard I/O allows you to move the motherboard to a higher/lower position for air-cooled/water-cooled systems. To ensure adequate airflow, a Total 6x120mm ARGB pre-installed (3x reversal and 3x forward fans, Fine mesh panel at the top, and on the PSU shroud side, help with a great ventilation Easy Build Gaming PC Case- This case has a lot of flexibilities convenient for components installations: Removeable 5x Sides, Glass to Glass full view; Spacious PC case with Easy Cable Management, A seal plate on the top radiator bracket ensures no pressure leak when installing smaller than a 360 radiator/3x120mm fans at the top Latest Gen. Large Graphics Card Ready- This Mid-tower Case is compatible with the largest NVIDIA 4000 series cards thanks to its ample room for graphics cards up to 410mm in length, and 165mm in height (for air cooling mode) V4.0 ARGB HUB-PWM |5v ARGB Sync, Remote Control multi-featured hub, Magnetic design for easy installation, the magnet at the bottom of the controller can be firmly attached to the metal plate of the chassis, making installation easy!
Detailed Photos
Product Parameters
| VISTA AB | MFG(8852) White | SPECIFICATION |
| Form Factor (Midi, Micro, Mini ITX, Full) | MID-TOWER |
| Chassis | SPCC : 0.6mm |
| PSU Form Factor | Bottom/ATX |
| M/B Form Factor | E-ATX,ATX,M-ATX,ITX |
| Front Panel | Tempered Glass,Mesh |
| Top Panel | metal cover |
| Side Panel | Left | Tempered Glass,Mesh |
| Right | Metal cover |
| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *2 (1*3.5HDD+2*2.5SSD or 2*3.5HDD+1*2.5SSD) |
| I/O | Buttons | *3 |
| USB2.0 Port(s) | *2 |
| USB3.0 Port(s) | *1 |
| USB3.2 Port(s) | *1 x Type-C (Gen2,Type-E,Mini 20pin) |
| Audio Support | *1 (COMBO AUDIO) |
| RGB Controller | V4.0 ARGB HUB PWM REMOTE |
| Controller max. fans | *9 |
| RGB Controller max. LED strips | *9 |
| Remote (IR or RF) | *1 |
Cooling Fan
Support | Front | *0 |
| Top | 3x120mm ,2x140mm (Fan optional) |
| Rear | 1x120mm (FN12A-C8I-W) |
| M/B Cover | 2x120mm (FN12A-C8I-W) |
| PSU Cover | 3x120mm (Reverse fan blade)(FN12A-C8I-RW) |
Water Cooling Support
(Radiator Size) | Front | *0 |
| Top | 120mm, 140mm,240mm,280mm,360mm |
| Rear | 120mm |
| M/B Cover | 120mm, 240mm |
| Dust Cover | Bottom, right side panel and top cover with dust filter |
| Slots | *7 |
| Carton & Logo | GAMEMAX |
| Dimensions | Chassis | (L)415*(W)210*(H)470mm |
| Full Case (inc Fascia) | (L)433*(W)210*(H)485MM |
| Carton | (L)552*(W)282*(H)496MM |
| VGA Card Length | Up to 410mm |
| CPU Cooler Height | 165mm |
| SPS Length | Up to 265mm |
| Cable Management Depth | 25mm |
>>
