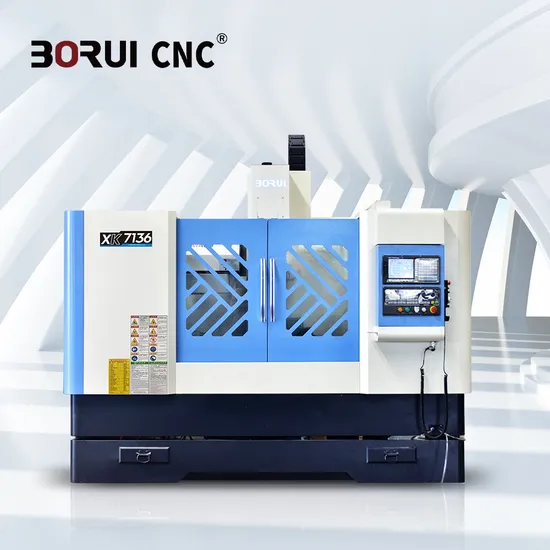

China CNC Milling Machine Xh7136 Xk7136 CNC Aluminum Milling for Sale

Product Description

China CNC milling machine XH7136 XK7136 CNC aluminum milling for sale Product Description
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
The main specification :

XH7136 CNC vertical machining center parameters
name	unit	Numerical value
main motor power	kw	5.5
Spindle inner cone	BT	40
Spindle speed	rpm	60/80~8000
Spindle end to work surface distance	mm	100~600
Distance from the center of the spindle hole to the surface of the column	mm	460
Work surface size	mm	1250×360
Table travel longitudinal/horizontal	mm	900/350
Workbench maximum load	kg	300
Workbench T-slot Groove number/width/pitch	mm	3/18/80
Maximum fast moving speed X direction	m/min	5
Maximum fast moving speed Y direction	m/min	5
Maximum fast moving speed Z direction	m/min	4
positioning accuracy	mm	0.025
Repeatability	mm	0.021
Machine tool dimensions (length × width × height)	mm	2220×1650×2350
Net weight of machine tool	kg	2200

Standard configuration:
1.The CNC system: SINUMERIK 808D
2.The knife: The famous Taiwan bamboo hat knife.
3.The unclamping cylinder: Taiwan Shangpin
4.The weight: Wuxi Xieqing nitrogen balance
5.The high quality castings: Resin sand casting
6.The spindle: Taiwan famous high speed spindle
7.The screw: HIWIN
8.The bearing: Japan NTN
9.The Internal protection: Total protection

Select the configuration:
1.M70B/M70A Mitsubishi FANUC 0i mate MD
2.The CNC dividing head
3.The taiwan famous brand manipulator knife storehouse
4.NC rotary table
5.The chip cleaner6.The fourth axis
