Field Joint Radiation Cross-Linked Pipe High Shrink Heat Shrinkable Sleeve for 3lpe Coated Steel Pipeline

Product Description

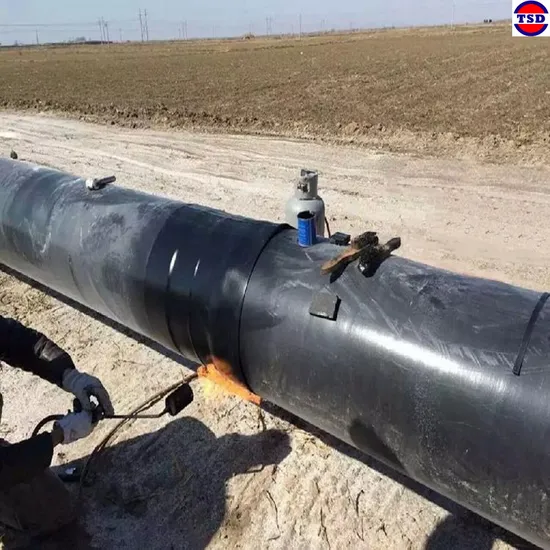

Field Joint Radiation Cross-linked Heat Shrink sleeve
TSD Heat Shrinkable Tape for pipes Introduce:
Heat shrinkable sleeve is composited by cross-linked polyethylene and hot melt adhesive.
They are mainly used with treatment of tee joint,angleheads, and valve connections and
diameter-changing position. It is veryconvenient to be installed. Used for girth welding
joint Offshore and underground coatings are good! Owing to special adhesive , this product
has high adhesive strength,can provide long-term protection to pipeline. It is also very convenient to be installed

Features & Benefit:
1.HSWS is a wraparound sleeve with a separate closure
2.Cross-linked backing provides superior abrasion, mechanical and chemical attack resistance.
3.High performance adhesive provides excellent resistance to Cathodic Disbondment to ensure
long-term corrosion protection.
4.Just-in-time customized lengths allow bulk rolls to be field cut to protect any pipe size.
5.Easy to operate and preheating temperature low(50 ºC)
6.Open sleeve configuration allows the product to be applied after the pipeline has been welded
and cleaned.
Application:
Oil, Gas, Wate, Pre-insulated Pipeline Joint corrosion protection.
Specification:

Pipeline Diameter Size	From 108mm to 2500mm
Width	100mm, 150mm, 200mm, 300mm, 450mm, 600mm, etc...
Thickness	1.8mm, 2.0mm, 2.2mm, 2.5mm, etc...
Measurement	Ton or Meter
Closure Patch	100mm, 150mm, 200mm, etc...

Technical Datas

Sleeve Operating Characteristics	Test Method		Test Result	Result
Pipeline Operating Temp.			Up to 60°C
Minimum Installation Temp.			75°C
Mainline Coating Compatibility			PE,PP, FBE,HPPC
Adhesive Properties
Softening Point	ASTM E28		95°C	pass
Lap Shear @ 23°C	ASTM D1002		400N/cm2	pass
Backing Properties
Tensile Strength	ASTM D638		2600PSI	pass
Elongation	ASTM D638		600%	pass
Hardness	ASTM D2240		50 Shore D	pass
Volume Resistivity	ASTM D257		1x1016 ohm-cm	pass
Tape Properties
Tape Thickness			2.5mm	pass
Backing thickness			1.5mm	pass
Adhesive thickness			1mm	pass
Peel Strength @ 23°C	DIN EN12068		70N/cm	pass
Impact Resistance	DIN EN12068		>15J	pass
Indentation Resistance	DIN EN12068		>1mm@60C	pass
Cathodic Disbondment @ 23ºC, 28 days with epoxy	DIN EN12068		12 mm rad	pass

About Us:
TSD Plastic is located in the coastal city-Qingdao, and the factory is only 1km away from Qingdao airport, 60km away from Qingdao seaport. The convenient transportation saves a lot of time and cost for our esteemed clents.
TSD Plastic Company has its own plastic sheet production line, adhesive coating machine for heat shrinkable tapes, electro fusion welding joint line, plastic sheet and plastic welding rod All the products are produced at its own workshop from raw material to end products, so the best quality of products can be controlled. TSD products are certified to international
standards like DVGW, ISO9001, Petro China ect, anexported to more than 20 countries, which has got good
reputation because of good quality with very competitive prices!

---
