| US$80,000.00 | 1 SET (MOQ) |

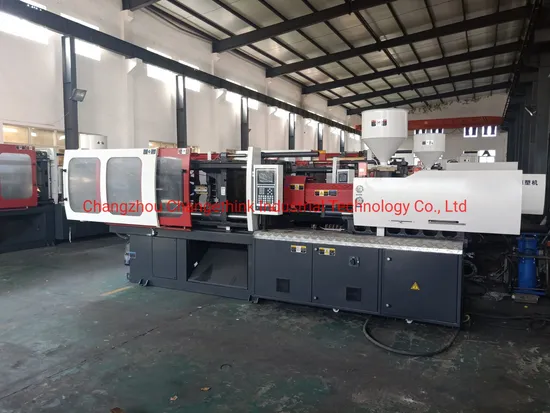

| SPECIFICATION | LTY4200 PET | ||
| INJECTION UNIT | |||
| SCREW DIAMETER | mm | 90 | |
| SCREW L/D RATIO | L/D | 25 | |
| SHOT VOLUME(THEORETICAL) | cm3 | 2480 | |
| INJECTION WEIGHT(PS) | g | 2678 | |
| INJECTION RATE | g/s | 661 | |
| INJECTION PRESSURE | MPa | 138 | |
| SCREW SPEED | rpm | 130 | |
| CLAMPING UNIT | |||
| CLAMP FORCE | KN | 4200 | |
| OPEN STROKE | mm | 705 | |
| SPACE BETWEEN TIE BARS(W*H) | mm | 730*730 | |
| MAX.MOULD HEIGHT | mm | 780 | |
| MIN.MOULD HEIGHT | mm | 250 | |
| EJECTOR STROKE | mm | 180 | |
| EJECTOR FORCE | KN | 150 | |
| OTHER | |||
| MAX.PUMP PRESSURE | MPa | 16 | |
| PUMP MOTOR POWER | kW | 45 | |
| HEATING POWER | kW | 42.7 | |
| MACHINE DIMENSION(L*W*H) | m | 8.8 * 2.0 * 2.5 | |
| MACHINE WEIGHT | t | 16 | |
