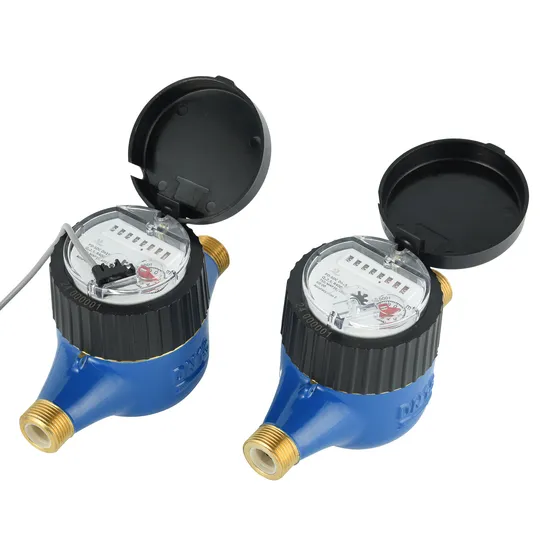

High Accuracy DN15-DN40 Brass Body Dry Type Piston Water Meter

Product Description

PD-SDC is Piston Displacement (Volumetric)water meter with magnetic transmission, dry type register for residential application with
sizes from Dn15 to Dn40 designed and manufactured by DZS and meets to the requirements of Directive 2014/32/EU on measuring
instruments; the European Standard EN14154+A1+A2: Water Meter; intended for the metering of cold potable water.
PARAMETERS:

Size (mm)	Dn15	Dn20	Dn25	Dn32	Dn40
L	110/165/170	190	260	260	300
W	87	98	111	145	174
H	108/114	120/122	135	159	181
d	R1/2	R3/4	R1	R1-1/4	R1-1/2
D	G3/4B	G1B	G1-1/4B	G1-1/2B	G2B

METROLOGY:

DN	mm	15	20	25	32	40
R	Q3/Q1	400	400	250	250	250
Q4	m3/h	3.125	5	7.875	12.5	20
Q3	m3/h	2.5	4	6.3	10	16
Q2	l/h	10	16	40.32	64	102.4
Q1	l/h	6.25	10	25.2	40	64
Max. reading	m3	99 999.9999
Min. reading	Liter	0.05
Pressure loss	△P	△P<63
Max, Pressure	MAP	MAP16
Max, Temperate	ºC	T30 / T50

(For different Q3 and R, please contact with DZS manufacture).
Max Permission Error:
a. In the lower zone (Q 1 ≤Q≤Q2): maximum permission error is ±5%
b. In the upper zone (Q2 ≤Q≤Q4): maximum permission error is ±2%( T≤30˚C), maximum permission error is ±3%
(30˚C <T≤90˚C)
The Pressure Curve:
REGISTER TYPE:The Pulse Emitter Device consists of a plastic housing with Reed Switch, and 1.5 m cable with 2 cores in Red and Black.
Electric Data: Vmax=24AC/DC, Imax=0.01A Capacity of the Pulse output or Pulse output pre-equipped.
REMOTE TRANSMISSION:
Q: What is your payment term?
A: 1.T/T,30% down payment, balance to be paid before shipment. 2.L/C.
Q: What is your main market?
A: Southeast Asia,Middle East ,South America,Europe etc.
Q: How about your capacity?
A: 50000pcs/month
Q: Can you give me a discount?
A: As you know, we are manufactory,so please believe us our price is competitive. If the quantity is big,we can consider give you
a discount.

Q: Can i get free samples from your factory?
A: Yes,samples can be free,however, freight has to be charged.
Q: If products have some quality problem,how would you deal with?
A: We will responsible for all the quality problems.

---
