3axis Vertical CNC Milling Machine Center Vmc7032

US$23,200.00 1 Piece (MOQ)

Basic Info.

Model NO.

VMC7032

Structure

Bed type

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Table Size

1000X320mm

Max. Travel of Table ( X, Y, Z )

610X320X400mm

Distance of Spindle Head to Table

130-550mm

Spindle Speed

8000rpm

Spindle Taper

Bt40

Positioning Accuracy

0.015mm

Spindle Motor Power

3.7/5.5 Kw

Tool Magazine Capacity

Max. Tool Size

100mm

Warranty

2 Years

Transport Package

Wooden Case

Specification

CE, SGS, ISO

Trademark

Crystal

Origin

Shandong, China

HS Code

8458110090

Production Capacity

35 PCS/ Mounth

Product Description

3axis vertical cnc milling machine center VMC7032
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping and boring etc.

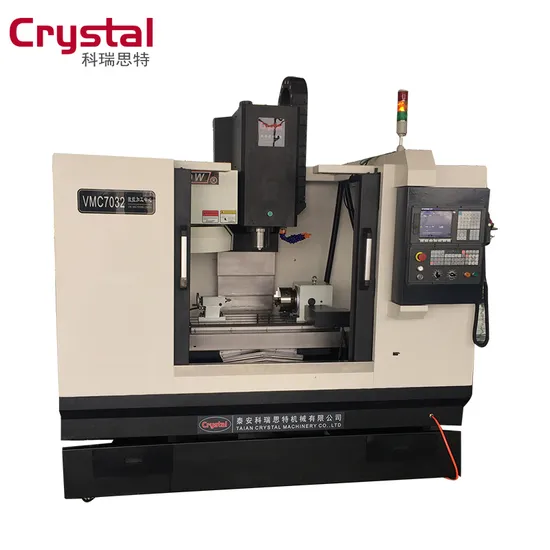

Product Display
VMC7032 Vertical Machining Center Features:
1.Taiwan BT40 Spindle
2.Taiwan ball screw and locking nut
3.Umbrella type tool Magazine, 12 tools
4.Fully-guarded type machine
VMC7032 Vertical Machining Center Specifications:

Specifications	Unit	VMC7032
Table Size (L*W)	mm	800×320
Travel of x,y,z axis	mm	610/320/400
Max, table load	kg	400
T-slot Size	mm	3-14-100
Center distance	mm	100
Spindle taper	--	BT40
Spindle center to Column guide distance	mm	376
Spindle end face to table distance	mm	130-530
Max speed	rpm	8000
Spindle motor power	KW	3.7/5.5
Spindle drive	--	Belt transmission
Positioning accuracy	mm	0.015
Repeat Positioning accuracy	mm	0.0075
Rapid feed of X/Y/Z	mm/min	1000
Cutting feed of X/Y/Z	mm/min	6000
Tool Magazine Capacity	tools	12
Max. Tool size	mm	100
Max. Tool weight	kg	8
Machine Weight	Kg	3000
Dimension	mm	228017602200
Power	--	3 phase 380V,

VMC7032 Optional Configurations:
1. System: KND2000M, FANUC, Siemens etc.
2. Spindle speed: 10000rpm
3. Fourth axis with 125°dividing head
4. Fifth axis
5. 16 pieces arm type ATC
