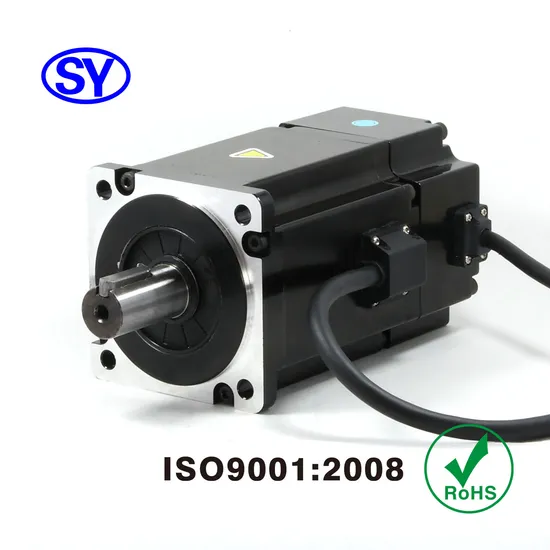

NEMA 24 60*60mm High Performance Electric Stepper Motor

Product Description

NEMA 14,16, 17, 23, 24, 34 Hybrid Stepper Motor, 50~750 W AC Servo Motor
Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included. The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers, cleaning machines and quadcopter for industry and our life. All the derived products of us can be customized for your requirement.
1. Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you for your reference.
2. Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get latest price list.
3. Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
Contacts: Ms. Rita Law
Mobile: (+86) 13631101993
shengyangmotor.en.made-in-china.com

Series & Length	Model Number	Holding Torque	Rated Voltage / Rated Current	Resistance per Phase	Inductance per Phase
		mNm oz-in	A	ohm	Mh
39BYG0 20mm (0.79in)	39BYGOO1	90 12.74	0.4	28	19
39BYG1 22mm (0.87in)	39BYG103	120 17	0.4	22	32
39BYG9 23mm (0.91in)	39BYG902	180 25.49	0.4	26	40
39BYG2 25mm (0.98in)	39BYG205	200 28.32	0.4	34	58
39BYG3 34mm (1.34in)	39BYG308	130 18.4	0.28	44	25
42BYGH0 26mm (1.02 in.)	42BYGH001	120 17	0.3	42	48
	42BYGH007	160 22.66	0.4	10.4	14
42BYGH1 33mm (1.30 in.)	42BYGH104	275 38.94	0.4	40	35
	42BYGH107	250 35.40	0.4	22	30
42BYGH2 34mm (1.34 in.)	42BYGH202	220 31.15	0.5	30	37
42BYGH3 40mm (1.57in)	42BYGH312	530 75.05	0.6	26	48
42BYGH4 40mm (1.57 in.)	42BYGH412	420 59.47	1	6.7	9.8
	42BYGH413	300 42.48	1	3.5	5
42BYGH11 34mm (1.34 in.)	42BYGH1101	240 33.98	0.4	30	45
	42BYGH1102	280 39.65	0.84	5.75	9.3
57BYGH0 31 mm (1.23 in)	57BYGH010-B-27	840 119	1.2	10	23
57BYGH1 52 mm (2.05 in)	57BYGH103-1	850 120	8/1.0	8	17
57BYGH2 56 mm (2.21 in)	57BYGH220-B-21	1240 175	2	2.4	5.8
57BYGH3 49 mm (1.93 in)	57BYGH301-A-27	1020 145	0.8	10	23
57BYGH4 49mm (1.93 in)	57BYGH401-B-27	900 128	0.6	8	33
57BYGH5 77 mm (3.04 in)	57BYGH510-C-31	930 132	1.2	0.76	3.3
57BYGH6 65 mm (2.56 in)	57BYGH601-C-22	1260 178	1.5	3.5	5.7
57BYGH7 98 mm (3.86 in)	57BYGH701-C-31	1380 195	1.5	1	3
57BYGH9 46 mm (1.82 in)	57BYGH910-B-27	1480 210	2	8.5	26
60BYGC0 30 mm (1.18 in)	60BYGC001	450 63.72	1.5	5.5	6
60BYGC1 54 mm (2.13 in)	60BYGC901	620 87.89	1.2	5.5	9
60BYGC2 54 mm (2.13 in)	60BYGC201	800 113.28	1.5	6	12
60BYG1 54 mm (2.13 in)	60BYG103	900 127.44	1.5	6.8	11
60BYGC3 58 mm (2.28 in)	60BYGC301	1080 152.93	1.5	6.4	14
60BYGC4 49 mm (1.93 in)	60BYGC404	780 110.45	1.5	5	9
60BYGC5 76 mm (2.99 in)	60BYGC501	1550 219.48	1.5	5.5	10.7
60BYGC6 79mm (3.11 in)	60BYGC601	1500 212.40	5.8\3.0	1.05\2.1	2.4\6.8
60BYGC7 30 mm (1.18 in)	60BYGC701	530 75.05	2	4.3	6
86BYGH0 68mm (2.64in)	86BGYH002	2500 354	3.8	0.8	6
86BYGH1 77mm (3.03in)	86BYGH102	411.6 58.28	5	0.65	4.5
86BYGH2 100mm 3.94in	86BYGH204	4900 694	5.2	0.43	2.7
86BYGC0 67mm (2.64in)	86BYGC001-C-30	2260 320	1.75\1.2	4.25\8.5	11\31
86BYGC4 127mm (5in)	86BYGC401-C-30	6780 960	5.2\3	2.75\5.5	12\36

---
