with Conveyor Belt Automatic PVC Rubber Material Roll to Sheet Cutting Machine

US$17,500.00
1-4 Pieces
US$4,500.00
5+ Pieces

Basic Info.

Model NO.
600CQ
Certification
CE
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Warranty Period
12 Months
Maximum Cutting Speed
80-100m/Min
Cutting Length Range
1mm-9999.9mm
Precision
0.05mm
Transport Package
Wodden Case
Specification
600mm
Trademark
DAPENG
Origin
Kunshan, Jiangsu, China.
HS Code
8441100000
Production Capacity
50 Sets/Month

Product Description

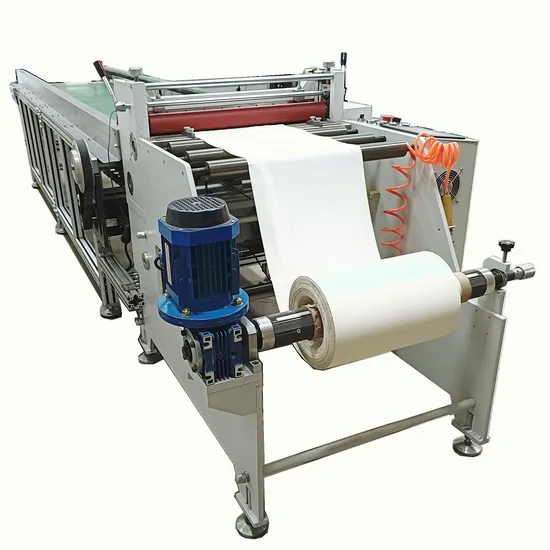

Automatic Roll to Sheet Cutting Machine for paper/film/foam
Function &Characteristics:
This machine adopt imported PLC touch screen operation control, easy operation and convenient, high speed of slitting, and high precise
The machine apply to PVC adhesive sheet, insulating paper, Mylar sheet, foam, industry adhesive tape, electronic adhesive tape and all kinds of electronic material sizing, through and kiss cutting.
It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting, entirely broken and partially broken electronic materials.
Model: DP-800 Automatic Paper Roll to Sheet Cutting Machine
Max Feeding Width ( mm ): 600
Main Engineer Power ( w ): 1500
Speed ( t/m ): 110
Size ( mm ): 1300*1000*1400
Weight ( kg ): 500
Precision ( mm ): ± 0.10
Power: 380V 50Hz
Automatic Paper Roll to Sheet Cutting Machine Technical Data
Touch Screen MCGS Beijing
PLC Mitsubishi Japan
Servo drivers Delta/Mitsubishi Taiwan
servo-actuator Delta/Mitsubishi Taiwan
Cutting motor (DC electric machine) Shenli Taiwan
AC contactor Mitsubishi Shanghai
solid-state relay (SSR) 20A Omron Japan
magic eye (if you do need , please tell us ) Omron Japan
Unwind shaft Tongze Changzhou

Main functions of Fabric roll cutting machine: paper roll to sheet cutting machine Feed material and return material by pressing the button on touch screen Preset total cutting quantity Preset cutting length Preset cutting speed Preset cut quantity each time ( applied for hot cutting) Flash cutting quantity finished Half cut-off with multi-cut Full cut-off with one-cut Five different cutting length can be set Different cutting quantity and circulation time can be set Return to ZERO After-service: 1. Warranty for machines is 12 months 2. A promptly reply within 24 hours 3. Free usage training before delivering machines in factory
this kind machine video links :
roll to sheet cutting machine video 500mm http://youtu.be/hlw7YjXucf0 https://youtu.be/TddZP9BJos4 (360 machine cut material length to 300mm ) https://youtu.be/hlw7YjXucf0 http://youtu.be/StpI-7gi1io : filter paper slit and cut sheet cutting machine https://youtu.be/ZF8X4zPPlVM : 600mm sparkle material cutting to sheet https://youtu.be/Cqm_Ah-FCkw : 500mm green pvc roll to sheet cutter http://youtu.be/FKYZw7SKQZs?list=UUKzn2_YUjZc_nkjjFRC07NQ (500) https://die-cutting.en.made-in-china.com ( 800 PVC ) http://youtu.be/Pp5_tqE7QR4?list=UUKzn2_YUjZc_nkjjFRC07NQ (800 mm ) http://youtu.be/x_A6leioBek?list=UUKzn2_YUjZc_nkjjFRC07NQ ( 1000 mm ) http://youtu.be/KYlL-HxKAGM : 550 kiss cut and through cutting machine https://youtu.be/XvDXNd42zOk : printting paper with photocell sheet cutting machine https://youtu.be/zULKzvewh2s : printed material cutting
