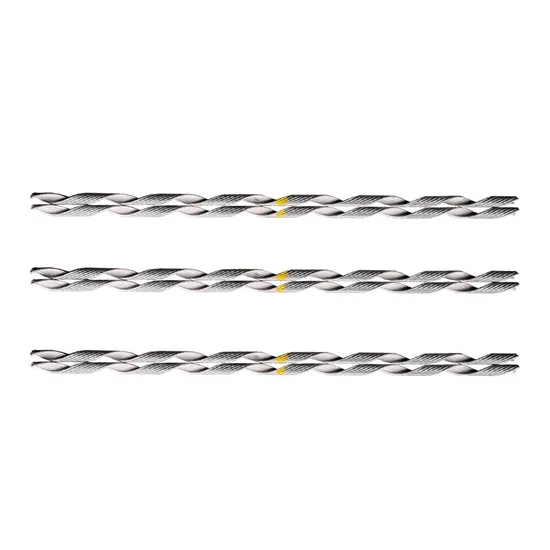

Galvanized Steel Wire Preformed Splicing Rod for Over Head Line

Product Description

Product Description Introducing our Galvanized Steel Wire Splicing Rod, a high-quality product designed for efficient and reliable electrical power fitting. This splicing rod is perfect for various applications in the electric power industry.
Key Features:
Galvanized steel construction for enhanced durability and corrosion resistance.
1/4 inch size for compatibility with a wide range of power fittings.
Conductor splicing rods for seamless and secure wire connections.
Preformed strand splicing rods for easy installation and maintenance.
Our Galvanized Steel Wire Splicing Rods are meticulously crafted to meet industry standards and deliver exceptional performance. With their superior strength and reliability, they ensure optimal power transmission and distribution.
Whether you need to connect conductors or splice preformed strands, our splicing rods provide a secure and long-lasting solution. Their galvanized steel construction ensures resistance against environmental factors, extending their lifespan and reducing the need for frequent replacements.
Choose our Galvanized Steel Wire Splicing Rods for your electric power fitting needs and experience the benefits of a high-quality product that guarantees efficiency, durability, and reliability.

The Helical conductor clamp made up of zinc-coated steel wire and aluminum clad steel wire is designed for single pole structured.
The Helical conductor Tension clamp has a firm strand link which can provide enough grip strength for ACSR, aluminum strand conductor, aluminum alloy stranded conductor etc, with larger size scope of applied conducting wire.
High Strength: Each conductor Tension clamp has an extra holding length, which can ensure the tensile strength reach over 100% of rating tensile strength
Good corrosion Resistance: The material is same as conductors, which ensures a strong corrosion resistance.
Simple Installation: The Helical conductor Tension clamp can be installed rapidly and easily at sit manually, it needn't any special tool. It can be completed by one worker.
Easy to Ensure Installation Quality: With well consistence, the conductor clamp wouldn't damage
Conductor during installation, which can be check by eyes, with compact and good shape.
General Purpose: It can be used for many fittings.

Conductor Splice
RATED HOLDING STRENGTHS Holding strengths of the applied splices are shown in pounds. Percentage of conductor RBS shown in parentheses.
Catalog Number	Nominal Conductor Size	ACSR	All-Aluminum	Aluminum Alloy
VLS-0150	716	715.5, 26/7 14,050 lbs. (50%)
	795	795, 45/7 11,450 lbs. (50%)
	874.5	874.5, 36/1 13,425 lbs. (75%)	874.5, 37W 14,830 lbs. (100%) 874.5, 61W 14,200 lbs. (90%)
VLS-0151	795	795, 54/7 14,250 lbs. (50%) 795, 26/7 15,600 lbs. (50%)		795, 37W 27,135 lbs. (90%)
	900	900, 45/7 12,700 lbs. (50%)	900, 37W 15,270 lbs. (100%) 900, 61W 14,310 lbs. (90%)
	954		954, 37W 16,180 lbs. (100%) 954, 61W 15,175 lbs. (90%)
VLS-0152	874.5	874.5, 54/7 15,700 lbs. (50%)
	900	900, 54/7 16,5150 lbs. (50%)
	954	954, 36/1 14,640 lbs. (75%) 954, 45/7 13,450 lbs. (50%)
	1,000		1,000, 37W 16,960 lbs. (100%) 1,000, 61W 15,900 lbs. (90%)
	1,033.5		1,033.5, 37W 17,530 lbs. (100%) 1,033.5, 61W 16,430 lbs. (90%)
VLS-0153	954	954, 54/7 17,100 lbs. (50%)		954, 37W 32,780 lbs. (90%)
	1,033.5	1,033.5, 36/1 15,825 lbs. (75%) 1,033.5, 45/7 14,450 lbs. (50%)
	1,113		1,113, 61W 17,690 lbs. (90%)
VLS-0155	1,272	1,272, 45/7 17,700 lbs. (50%)	1,272, 61W 19,800 lbs. (90%)
Right-hand lay standard EXPLANATORY NOTES:
(1) Refer to General Recommendations at the beginning of this section for explanation of "Rated Holding Strength (2) For sizes or strandings not shown, consult Vilun.

For Detail information please contact with me.
Packaging & Shippingcarton or wooden packaging or according to your requirments
Shipping by sea or by air
Our Serviceswe can supply sample according to your drawings and technical requirements.
Company Information
Vilun Electric Co., Ltd is a professional manufacturer for preformed fitting and power switchgear. Researching, manufacturing and sales are in our line of business.
It is guaranteed the company's products safety and reliability by scientific production technology, Professional technical personnel, perfect quality assurance system, and advanced test and inspection Equipments. Vilun has already obtained the production license of power fitting, license of power facilities Contractor by national technical supervision and inspection organization; And also through the ISO9000 Quality management system authentication.
The main products of Vilun are: Preformed conductor tension clamp, preformed conductor clamp, Preformed ADSS optical cable fitting, preformed OPGW optical cable fitting, preformed splicing, preformed Spiral anti-vibrator, preformed damper and so on. The special spiral preformed product design, makes our preformed fitting have the benefit of easy Installation, reliable performance, anticorrosion, anti-fatigue and guarantee the installation quality easily. It can improve the protection of line and reduce the influence to the line under guarantee the requirement Of design. Vilun's products have applied to power transmission and distribution of power system Companies widely, and get extensive praise after many years application on lines. Vilun's products have Sold to many countries in Europe and America, Asia, Africa, Oceania.
Holding on the principle of "develop with technique, subsist with quality'', the company provides the Customers with first-class products, fine pre-sale and post-sale service. "The pursuit of excellence, And create the future together ", all staff in Changchun Vilun will continue devote us to developing power Transmission and distribution fitting with all world power enterprises.

---
