Product Description 75" Interactive Flat Panel Technical Specifications:
| Dispay Panel |
| Model No. | LTV-H7500A |
| Panel Size | 75inch |
| Backlight | LED Back Light Display |
| Aspect Ratio | 16:9 |
| Panel Resolution | 3840 x 2160 @ 60Hz |
| Display Area | 1650.24(H) x 928.26(V) |
| Pixel Pitch | 0.4298(H)x0.4298(V) |
| Brightness(nits) | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° / 178° |
| Response Time | 8ms |
| Supported Colors | 1.07 Bilion Colors |
| Touch System |
| Detection method | Infrared ray shading detection system |
| Touch tool | Hand or othe solid (soft tip) object |
| Accuracy | ±2mm |
| Read speed | More than 125 responses per second |
| Response time | Less than 8 ms |
| Resolution | 32768 x 32768 |
| Interface | 2 |
| Touch driver | Don't need |
| Touch points | 20 points |
| Soft hot key | No |
| Glass | 4mm Tempered Anti-Glare Glass |
| Supported OS | Windows 7, 8, 10; Mac OSX, Linux, Andriod |
| Android System |
| System Version | Android 6.0 or 8.0 |
| CPU | Cortex A53*4 1.5GHz |
| GPU | T720MP2 |
| RAM | 2GB |
| ROM | 8GB |
| Audio |
| Built-in Speakers | 10W x 2 |
| Sound Channel | 2.1 |
| Connectivity |
| Front I/O | Android USB x 1, Windows USB x 1, Touch USB x 1, HDMI x 1, USB3.0 x 1 |
| Rear I/O | HDMI x 2, VGA x 1, USB 3.0 x 2, Ethernet x 1, Touch USB x 1, Ypbpr x 1, AV x 1, RF x 1, USB2.0 x 2, SD-card x 1, COAXIAL x 1, AV OUT x 1, RS232 x 1 |
| Audio | 3.5mm Audio in / 3.5mm Audio Out |
| Control | RS-232C / Ethernet |
| Wifi | Bluit-in |
| Bluetooth | Bluit-in |
| Physical Specifications |
| Net Weight | 48kg |
| Gross Weight (Carton) | 56kg |
| Dimensions | 1516(L)*96(T)*947(H)mm |
| Packing Size (Carton) | 1646(L)*230(T)*1062(H)mm |
| OSD Functions |
| Language | Multi Languages |
| Source Auto Detect Function | Yes |
| OSD Key Lock Function | Yes |
| Freeze Screen | Yes |
| Blank Screen | Yes |
| Power |
| Power Supply | AC 100V ~ 240V (50/60 Hz) |
| Maximum Power Consumption | ≤ 450W |
| Stand By | ≤ 1W |
| Environment Spec |
| Storage Temp | -20ºC ~ 60ºC |
| Storage Humidity | 10%RH ~ 90%RH |
| Running Temp | 0ºC ~ 50ºC |
| Running Humidity | 10%RH ~ 90%RH |
| Accessories Included |
| Power cable | Yes |
| HDMI cable | Yes |
| Remote controller + battery | Yes |
| Touch pen | Yes |
| Software CD | Yes |
| User Manual | Yes |
| OPS Computer (Optional) |
| CPU | Intel® Core™ i5-4460 Processor |
| Processor Base Frequency | 3.2~3.4 GHz |
| Processor Graphics | Intel® HD Graphics 4600 |
| RAM | 4GB / 8GB |
| Storage | Support on board eMMC / SSD 128GB/256GB |
| WiFi | WiFi 802.11 b/g/n/ac |
| LAN | 10/100 mbps Ethernet |
| I/O Port | VGA x 1,HDMI x 1,WIFI x 1,LAN x 1,COM x 1,MIC-IN x 1,LINE-OUT x 1,USB2.0 x 5,USB3.0 x 1 |
| Windows Version | Windows 10 Home 64 bits |
| Wireless Display Receiver (Optional) |
| Function | Miracast, Dlna, AirPlay / AirPlay mirror |
| Wireless Connection | WIFI 802.11 b/g/n ac (2T2R) |
| Supported OS | Android 4.1 Afterward ; IOS 6.0 Afterward ; Win 7 / 8.1 / 10 (Win7 Require Driver Software) |
| Supported Resolution | 720 / 1080 P |

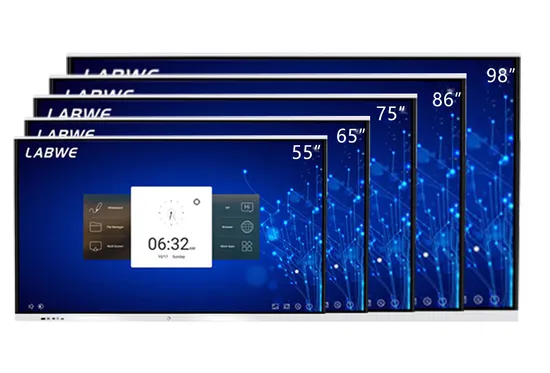

Detailed Photos Interactive Flat Panel (Multiple sizes) of Same Design:
