Automatic Heavy Duty Edge Banding Machine for Furniture Making Machine E-335K

Product Description

E-335K Automatic Edge Banding machine
Separating spray→ Pre milling→ Vertical Glue pot→ Tape pressing with 5 rollers→ Rough Trimming→ Fine Trimming → Fine Scraping → Wire breakage → Flexible flat scraping→ Double rail end cutting → Cleaning spray → Buffing
Intelligent edge banding machine industrial control system Simple, intuitive operation, reliable, fast and intelligent control are the development trend of edge banding machines. They have more functions and can visualize the machine operation data on the PC screen, so that operators can understand the actual working status of the machine in real time. The reserved USB data access port can realize flexible edge banding by scanning the code. Adding a help function to reduce production preparation time The graphic interface facilitates user input through simple guidance and menu prompts. Function summary: conveyor switch, power switch, emergency button, USB data interface, parameter setting, IO diagnosis, alarm record, function selection, production report, melt data, conveyor speed, edge thickness, auxiliary function, cleaning device, pressure beam lifting, voltage monitoring, current monitoring...

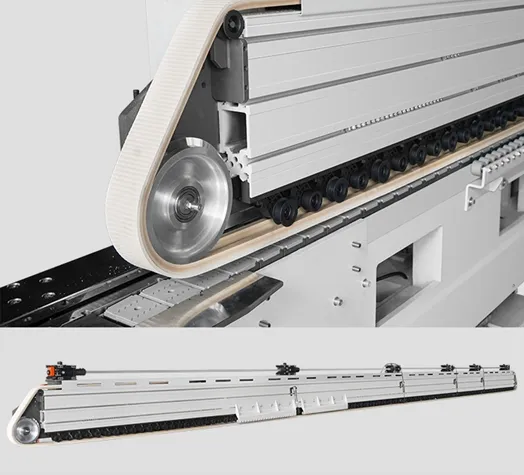

Heavy-duty belt pressure beamHeavy-duty belt pressure beam is the core component to provide stable edge banding.
Heavy-duty support columns + Rv40 reducer
Ensuring the parallelism and tightness between the guide rail and the pressure beam, also can fully absorb all vibrations generated during the processing.
Glue Preparation Process
Separator and pre-milling device are important functional devices to improve the quality of glue coating. Separator is pre-sprayed on the upper and lower surfaces of the workpiece edge, which makes it more efficient to remove residual glue later. Pre-milling device helps to eliminate defects such as pinholes that may appear during the glue coating process, ensuring the quality of workpiece processing.


Pre-milling Unit
Precision is the basis of high standards
Pre-melter device
Set a fixed hot melt adhesive temperature and keep it constant utomatically.
Shorten the heating time through liquid level snsing control.
Manual or automatic melting of hot melt adhesive as need.
Accurate and gradual heating.
Glue does not flow back into the glue tank.
Vertical Glue Pot
Adapt to pre-milling device.
Can do PUR glue injection.
System control to adjust the glue amount.
With glue throwing function.

Infrared lamp

Automatic Tape Feeding

Precision take cutting

Five-Roller Pressing Device

Double Rail End Cutting Unit

Triming Unit

Flexible Flat Scraping

Buffing

Related products

E-220 AUTOMATIC EDGE BANDER MACHINE	E-240 AUTOMATIC EDGE BANDING MACHINE
R45 COMPUTER TABLE SAW	TS-320 SLIDING TABLE SAW

1. What's your guarantee? Which type of after-sale service can you provide to us? For all the machines, we can offer a 1-year guarantee to our customers; for any parts damaged due to the quality issue, we will send the parts via DHL, FedEx, or air shipment urgently. After-sale service: if you purchased our CNC nesting center or edge bander, and we don't have any dealer or agent in your region, we will send our engineer to your site for installation and training ( you should pay the round-trip flight ticket, salary of engineer- each day 100.00USD, also take charge of the local accommodation. ). Considering the situation, we can do the online training. Also any small issues, you can knock us online, we will offer rapid action to your concerns. 2. Which type of payment term can you accept? How could we keep our capital safe? We can accept the T/T and L/C at sight. We have more than 10 years of exporting experience, so we know more about the capital safety concern of our customers. We will offer the video call or pictures to your side, during our loading, then you can check what we have done for the loading, if any cheating, then you can control your payment (T/T or L/C). 3. What is the leading time, if we did the payment to your side? The leading time of most common machines will be 10-25 days after collecting the down payment/copy of L/C. Specially designed production will take a little bit longer time. 4. Can you accept some O.E. M service to us? or any other service could you do for us? We have more than 15 years experience in the woodworking machinery industry, also have more than 5 experienced engineers, so we can do the special design according to your requirement. Also, our exporting team has more than 10 years of experience in this field, so they can help you to purchase relevant products, parts, or tools, which can save your time and your cost.
