Plastic Machinery Part110mm Wholesale Screw Barrel Plastic Granulator Screw Barrel 38 Material Treatment Screw Shaft Twin Barrel Twin Screw Plastic Feed Screw

Product Description

Product Description
Customized 110mm Screw Barrel Plastic Granulator Screw Barrel 38 Material Treatment factory price
Product application
High speed single screw plastic extruder, strong torque, large thrust, high strength alloy steel gear and shaft superior performance, easy to operate, friendly control interface, high speed extrusion, high yield and high quality products, is a popular plastic processing machinery.
Product Parameters

Specification:
1) 38CrMoAlA(JIS SACM645)
2) 42CrMo(JIS SCM440)
3) 9Cr18Mov
4) CW6Mo5Cr4V2
Characteristic
High quality alloy-steel
Heat-treatment
Nitriding treatment
Electroplated hard-chrome finish
Spray bimetallic coating
Depth of nitriding layer: 0.5~0.8mm
Nitriding hardness: 900~1000Hv
Nitriding brittleness: less than one grade
Surface roughness: Ra0.4
Straightness of screw: 0.015mm
Surface hardness of chromium plating after nitriding: greater than 950Hv
Chromium plating thickness: 0.025~0.085mm
Application
PVC wood plastic, PE wood plastic, ultra-high molecular plate, free brick plate, 1:2 above high calcium buckle plate, high calcium pipe, high calcium profile, soft PVC sheet, PVC foam board and other ordinary plastics, PP, PE, ABS, PVC, raw material granulation, production of pipe, profile, sheet and other products.
Physical Characteristics of Bimetallic Screw

Type	Model	Hardness (HRC)	Wear resistant	Corrosion resistant	Thickness	Application Glass Fiber
PTA weld	38CrMoAlA Ni-base alloy	45-58	Excellent	Special excellent	1.5~3mm	Under 10%
	SKD61 Ni-base alloy	45-58	Special excellent	Excellent	1.5~3mm	Under 15%
Nitriding	Nitrided	HV more than 800	Good	Good	0.25mm	/

2. Product Details

Amount of injection (g)	screw diameter x length(mm)	barrel diameter x length(mm)	Amount of injection(g)	screw diameter x length(mm)	barrel diameter x length(mm)
30-90	Φ30x900	Φ85x860	800-1250	Φ75x1825	Φ170x1725
60-125	Φ35x910	Φ85x860	1000-1500	Φ80x2000	Φ180x1805
100-150	Φ38x935	Φ95x900	1250-2000	Φ85x2300	Φ190x1900
125-160	Φ40x980	Φ95x910	2000-3000	Φ90x2700	Φ210x2000
125-300	Φ42x1030	Φ105x8880	2500-5000	Φ100x2600	Φ230x2405
250-400	Φ45x1210	Φ115x1165	3000-6000	Φ110x2600	Φ256x2590
300-500	Φ50x1300	Φ125x1260	4000-10000	Φ120x2800	Φ256x2800
450-600	Φ55x1335	Φ130x1320	6000-8000	Φ130x3010	Φ256x2970
500-700	Φ56x1350	Φ130x1350	8000-10000	Φ145x3010	Φ256x3200
500-700	Φ60x1380	Φ140x1350	10000-15000	Φ160x3500	Φ270x3200

Detailed Photos

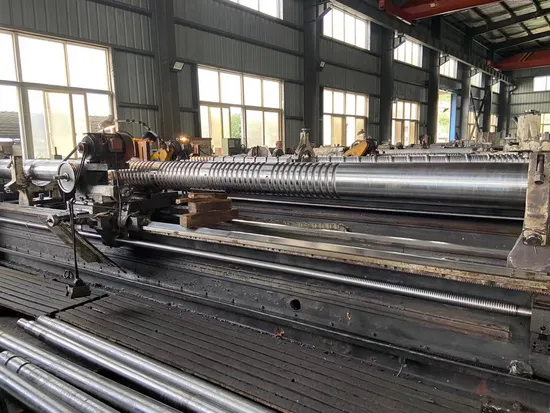

Factory picture
Packaging & Shipping
1)Packing: Wrapped up by film in wooden cases2)Port Departure: Ningbo Port3)Delivery time: 25 working days upon receipt of 30% deposit(days based on your quantity)We use strong plywood or wooden case for all our products.
FAQ
Q1. Are you a trading company or a manufacturer?
We are a BSCI&ISO-9001 certificated manufacturer.
Q2. Can I place the customized order for different sizes, colors, materials,packings….?
Yes, all the customized orders are welcomed.
Q3. Could I get a QC report before delivery?
Yes, the specific QC reports will be sent to you before delivery.
Q4. Can I get a lower price if I place a larger order?
Yes, the price will be modified according to your order quantities.

---
