Basic Info.
Type

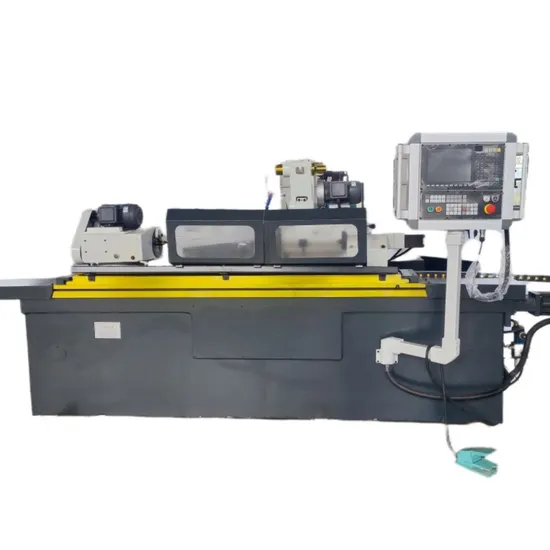

Multi-Use Grinding Machine
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Transport Package
Plywood Case
Specification
3800*1900*1900 mm
Production Capacity
40000/Piecs
Product Description
Product Description
Purpose
For grinding cylindrical and conical outer surfaces (external type) or inner and outer surfaces (universal type).
Scope of application
Grinding single piece/small batch shaft and sleeve parts in general precision machining workshops, tool workshops and machine repair workshops .
Working method
Manual grinding: longitudinal grinding, plunge grinding.
Manual fixed-stroke grinding: Fixed-stroke grinding is achieved by control of the stopper.
For ease of use, the control box uses a single handle for centralized control; that is, the start and stop handle of the workbench and the quick advance and retreat handle of the grinding wheel frame are combined into one. When the handle is moved left and right, the start and stop of the workbench are controlled; when it is moved forward and backward, the grinding wheel frame is controlled.
Product Parameters
| Model | unit | M1432/1000 |
| Grinding diameter(outer/inner) | mm | 8~320/10~20 |
| Max. Grinding length(outer/inner) | mm | 1000 /125 |
| Max. Diameter of grinding hole | mm | 250 |
| Min. Diameter of grinding hole | mm | 10 |
| Max. Grinding hole depth | mm | 125 |
| Max. Weight of the workpiece | kg | 150 |
| Center height | mm | 180 |
| Top center distance | mm | 1000 |
| Max.movement of the worktable | mm | 1100 |
Packaging & Shipping
Company Profile
Henan Rowdai Machinery Equipment Co.Ltd Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplying
our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
>>
