Cnmanlaser Metal Phone Case Cabinet Type Fiber Laser Marking Machine Engraving Machine Cardboard

Product Description

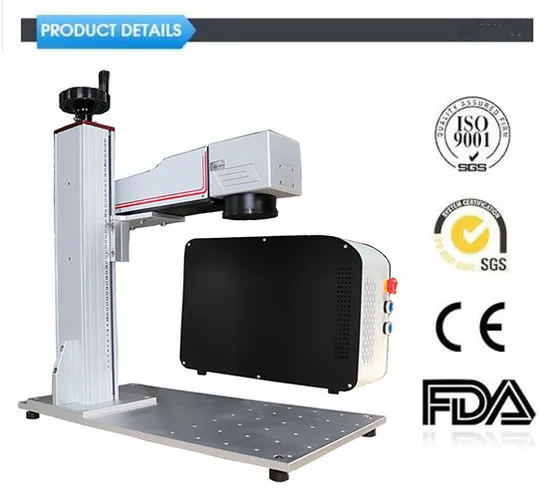

CNMANLASER Metal Phone Case Cabinet Type Fiber Laser Marking Machine Engraving Machine cardboard
(Model:Man-30)
Fiber laser marking machine is the new generation marking system developed by our company with advanced laser technique,it adopts fiber laser to output laser an achieves to marking function after high speed scanning oscillating mirror system. It has higher photoelectric transfer efficiency. This machine adopts air cooling way and the whole machine is small, the out put beam is qualified, high reliability.

Model	MAN-30
Laser power	10W /20W /30W
Laser wavelength	10.64um
Laser type	America Synrad / China Davi metal RF laser source
Minimum line width	0.02mm
Repeat frequency	20KHz-100KHz
Marking line speedy	≤ 3000mm/s
Marking depth	0.01-0.5mm
Marking area	110×110mm/175×175mm/200×200mm
Graphic format supported	DXF,PLT,BMP,AI etc
Operating voltage	110V- 240V/50-60Hz/15A
Cooling	Air Cooling
Packing size	890*430*650mm (L*W*H)
Gross weight	55KG
Package	Standard export wooden case

Low Cost In Use >> No wearing part free of maintenance.
High Speed >> Imported laser scanning system makes the marking speed up to 7000mm/s .
High Precision>> High precision , re-position precision is 0.002mm.
Energy Saving>>The efficiency of optic electrical converting is up to 70%.
High Reliability>> MTBF ( mean time between failures ) >100 , 000 hours.
Integrated and Compact >> Small size only 0.5 M2, can be put on desk and easy to install .
Easy Operating>> easy operation ,VCD training , trouble free
10 Years Long Lifetime >> Fiber laser device adopts Germany IPG technology , 100000 hours lifetime .
No consumables>> while machine can be used free of maintenance for 8 -10 years.
Air cooling>> Adopts air cooling , has excellent cooling effect than the other cooling method.
Applicable Industry:
Mainly used to mark on various plastic buttons and electric devices, to mark code on CMOS chip, color paper and food package. It can also be used in the scope with high requirements, such as clock, jewelry, module, bitmap marking etc..
After- sale services:
1) 3 years warranty for whole machine and lifetime maintenance;
2) OEM service offered, free to add your logo on the surface of the machine
3) English software, user manual and CD show you how to operate the machine easily
4) professional online guidance offered(face to face);
5) 24 hours technical support by e-mail, calls and door-to-door service
6) Mechanical Malfunction: Our equipment follows principle of modular design for easy maintenance.
The professional after-sale service team shall reach you immediately and solve the machine's problem .
7) Damage in shipment: Under CIF delivery terms. We pay insurance in shipment for every package,
once any damage during transportation, We will assist you to solve the claims with the insurance companies to collect your money back in time.
8) Even if you didn't buy machines from us, we can also help you with your machine if you need

---
