| US$1,000,000.00-1,500,000.00 | 1 Set (MOQ) |

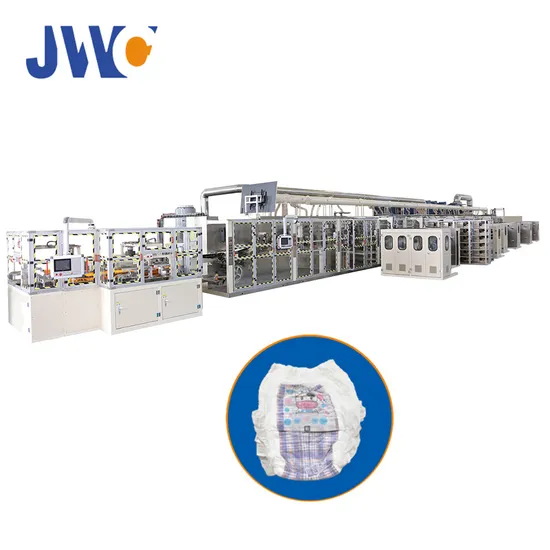

| 1.Machine frame Reasonably solid square steel frame 2. Crusher system 3. Fluff forming system 4. SAP feeding system 5. Bottom tissue feeding, roll diameter φ800mm 6. Upper tissue, roll diameter φ800mm 7. Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue 8. ADL feeding, roll diameter φ800mm 9. Fluff core inner cut device 1 set,adopt frame type structure, increase the cutter life 10. Leak cuff unit 11. Hydrophilic nonwoven supply, roll diameterφ800mm 12. Three pieces complex, two sides fixing unit, adhesion pressing 13. Bottom film supply 14. Surface layer, absorption core, bottom film pressing 15. One set products cutting unit 16. Inner waist nonwoven supply 17. outer waist nonwoven unwinding, roll dia 800mm | 18.waist fluff part licra cut unit, in case this part gets wrinkled. 19.waist middle slitting, web guide after slitting 20.core turns into horizontal direction, 21.core combines with waist material 22.waist nonwoven side folding 23.product vertical folding, pressing and transmission ,web guide before circular welding 24.Z tape: passive unwinding, pulling, absorption transmission, short cut, combine. 25.device on circular welding two sides(heated). This device is controlled by servo motor. It works by heat pressing based on material features. It adopts the most advanced circular welding device to ensure the production high speed running. This part material needs to be confirmed. 26.final cut unit 27.products turn into 90 degree horizontal direction 28. Duel auto rejection exits |
| 1 | Design speed | 800pcs/min |
| 2 | Stable working speed | 600-700pcs/min |
| 3 | Qualified rate | 97% exclude the wastage due to the glue applicators and materials splicing joint |
| 4 | Efficiency | 85% |
| 5 | installation capacity | 380KW |
| 7 | Electricity | 380V 5%50HZ |
| 8 | Wire | Three phases four wires 380V/50Hz (ground wire) |
| 9 | Air pressure | 0.6Mpa |
| 10 | Total weight | About 100tons |
| 11 | Machine size | 38*8*4.5 M(L*W*H) |
| 12 | Working space | 42*11*6 M (L*W*H) |
| 13 | Machine color | Rice white ,can be changed by order |
| 14 | Product size | 3sizes |
| 15 | Containers | 6X40HQ |
| Auto lubricating System Auto lubricating for the cutter units ,can make the machine have better cutting effect and extend the life of cutter system | Human-Machine Interface Working speed(piece/min), single producing output, monthly output,annual output, counting quantity and products' passing rate can show on the screen | Materials automatic feeding System Main raw materials adopt auto unwinding, auto splicing, tension control, auto FIFE web guider functions to guarantee the precise and stablility |
| Name | Brand | Origin | |
| 1 | Servo motor | Mitsubishi | Japan |
| 2 | Auto web guider | FIFE | USA |
| 3 | Touchable screen | Banner | USA |
| 4 | PLC controlling system | Mitsubishi | Japan |
| 5 | Sensor | Banner | USA |
| 6 | Safety production | Shneider | France |
| 8 | Cutter raw material | M7 | USA |
| 9 | Gear according to usage | BEM/NSK/SKF | Germany/Japan/Sweden |
| 10 | Timing belt | Optibelt or Gates | Germany/USA |
| 11 | Low voltage electronic | Shneider | France |
| 13 | Temperature controlling system | Omron | Japan |
| 15 | Pressure regulating valve | Airtac | Chinese Taiwan |
| 16 | Pneumatic element | Airtac | Chinese Taiwan |
| 17 | Solenoid valve | Airtac | Chinese Taiwan |
| 18 | Moisture separator | Airtac | Chinese Taiwan |
| 19 | Automatic fault alarm | Mitsubishi | Japan |
