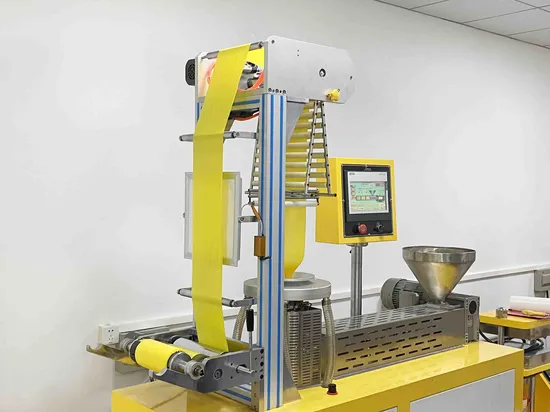

Laboratory Blow Molding Machine for Making Film Sample

Product Description

Product Application
1) Application: PE, modified PP, modified PET, and other plastic materials which could be blown.
2) New material formula development.
3) Film blowing property test.
4) Master batch color dispersion test.
5) Optimization of blown film production technology.
6) Production of simple layer tubular film blowing.

SPECIFICATIONS FOR XH-430 LAB BLOWN FILM MACHINE
Screw diameter	25 mm
Screw L/D	33:1
Screw rotating speed	0-95 rpm
Main motor power	2.2KW
Film thickness	0.02-0.2mm
Max film width	180mm
Power supply	380V/50Hz/3 phases or customerized
Control system	SIEMENS PLC touching screen control

Main Features
1) Specially manufactured screw and barrel to guarantee precision and quality;
2) International brand variable speed control motor to precisely control the screw rotating speed;
3) The lab blown film machine frame can be electrically lifted, which is easy to lead the film and adjust the production technology;
4) Equipped with retractable unit for the blown film frame to easily transport and move;
5) SIEMENS touching screen PLC control system.
Details Images

---
