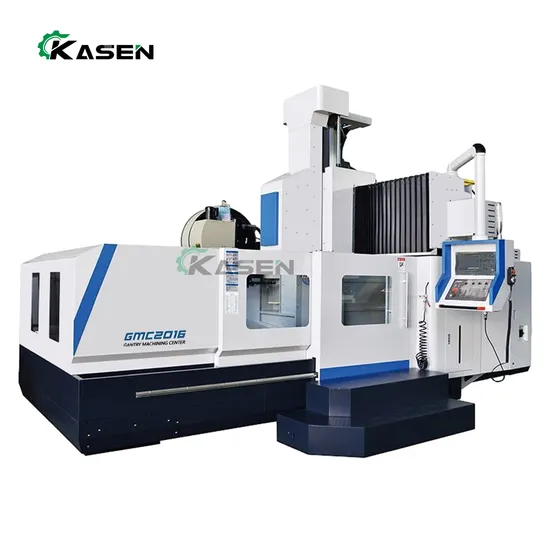

Gantry CNC Milling Machine Gmc2016 CNC Gantry Milling Center

Product Description

Gantry CNC Milling Machine GMC2016 CNC Gantry Milling Center
Product Description
Feature:This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the roughmachining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety ofprocessStandard Accessories: Optional Accessories:Armless type tool magazine System:FANUC,Siemens,GSK etc.Automatic lubrication system Arm type ATCCooling system 4axis or 5axisHeat Exchanger Automatic chip conveyorPneumatic system Spindle center coolantFull Cover machine enclosure Higher speed of SpindleAir system/ Air gun Air conditioner Product Parameters

model	GMC-1313	GMC-1613	GMC-2016
route or distance of travel
X axis (bench table movement)	1300mm	1600mm	2000mm
Y-axis (longitudinal movement of the saddle)	1300mm	1300mm	1600mm
Z axis (slip vertical lift)	700mm	700mm	700mm
Distance from spindle end face to work table (BT40)	100-800mm	100-800mm	100-800mm
Distance from spindle end face to work table (BT50)	65-765mm	65-765mm	65-765mm
Crossing the width of the gantry	1350mm	1350mm	1650mm
feed
The X axis moves quickly	24m/min	24m/min	20m/min
The Y axis moves quickly	24m/min	20m/min	20m/min
The Z-axis moves fast	24m/min	20m/min	20m/min
Cut into	1-10m/min	1-10m/min	1-10m/min
Triaxial wire rod (C3 stage grinding)	4012/4012/4012	5012/5012/5012	5012/5012/5012
Three axis guide rail	45	45	45
Triaxial servo motor torque (SYNTEC)	28/18/18B N.m	28/18/18B N.m	28/28/28B N.m
Three-axis servo motor torque (Fanuc)	βiS22/22/22B	βiS30/22/22B	βiS30/30/30B
staging
Workbench area	1300×1000mm	1700×1000mm	2200×1300mm
Maximum load bearing	1500Kg	2000Kg	3000Kg
T groove	5×18×190mm	5×18×190mm	7×22×190mm
principal axis
standard configuration	Belt typeBT40/50-150	Belt typeBT40/50-150	Belt typeBT40/50-150
speed	8000/6000 rpm	8000/6000 rpm	8000/6000 rpm
taper hole of spindle	BT40/50	BT40/50	BT40/50
Main motor power (SYNTEC)	11/15KW	15/18.5KW	15/18.5KW
Main motor power (FANUC)	βil12/10000	βil15/8000	βil15/8000
accuracy
Positioning accuracy (JIS standard)	±0.005/300mm	±0.005/300mm	±0.005/300mm
Repeated positioning accuracy (JIS standard)	±0.004mm	±0.004mm	±0.005mm
else
weight	8000Kg	10000Kg	12000Kg
outline dimension	3800×3000×2900mm	4600×3000×2900mm	5600×3300×2900mm

Company Profile

After Sales Service
SERVICE SUPPORT
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.

2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.

3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.

4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
