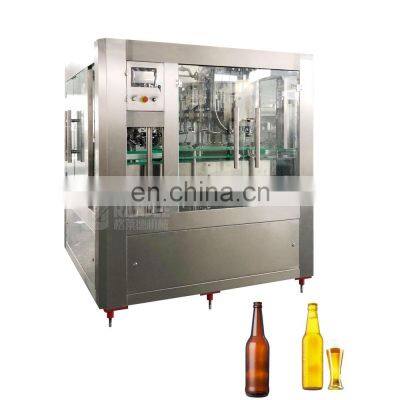

Automatic alcoholic drink beer filling machine for glass bottle

Product Description

Product Description
Automatic alcoholic drink beer filling machine for glass bottle
Product Description
Machine description:
This machine integrating washing bottle, filling and capping in one unit.
1.Feeding bottle on belt by manual, bottles going to washing part by conveying belt, washing bottle gripper gripping bottle neck, along washing bottle pathway overturning 180°, water pump opening, water spraying bottle inside and outside, then drying along washing bottle pathway overturning 180°, bottles come out by conveying belt, and entering into filling position, with hanging bottle neck positioned filling machine lifting mechanism on cliping bottle neck plate, make the bottles lift up, fit to filling . During lifting process, check bottle on cliping bottle neck or not. If with bottle, then starts filling beer. If no bottles, then the filling valves remain close state. After finishing filling, bottle lifting mechanism go down, the filled beer bottle sent into capping machine by star wheel, after capping, the bottle is sent out through star wheel to conveyor belt.
2.Emphasis on opening machine design, minimized the machines’ components, smooth and easy design, washing, filling capping part in one working table, take deep consideration of corrosion resistance , all parts contacting with liquid uses SUS304, and design for all pipes and connection joint, bending radius , design is streamline without hygiene corner.
3.Consider bottle characteristics, adopt cam lifting way, stable operation, and increase filling central device to make the filling more accurately.
4. For beer characteristics, beer tank and filling valve is customized made.
Additional increase diaphragm valve to ensure beer supplying stability ,reduce beer foaming, make sure that beer level accuracy.
5. Pressure preparation is combined controlled by solenoid valve under working table, with PLC and electrode points pressure gauge. Beer tank is prepared pressure first, then feeding beer. If too big pressure with feeding beer, beer tank will air exhaust to set up pressure, if pressure is not enough, CO2 will feed to beer tank for pressure preparation to reach to required pressure.
6. The main purpose of water injecting and foaming device is filtered by high pressure and heated water , and for high pressure waterline sent into bottle , and make bubble, and take out air from the bottle, and ensure the quality of beer.
Machine show:
Main technical parameter:
ModelBGF
6-6-1
BGF
14-12-4
BGF
18-18-6
BGF
24-24-8
BGF
32-32-10
BGF
40-40-12
BGF
50-50-15
Rinsing heads6141824324050
Filling heads6121824324050
Capping heads1468101215
Suitable bottle sizeH:170-320mm Diameter:50-100mm
Cleaning pressure(MPa)3.80.25-0.3
Capacity(b/h)80020003500600090001100018000
Power(kw)1.52.23.53.85.57.510
Dimension(mm)1900X1700
X2200
2100x1800
x2500
2600x2100
x2500
3200x2300
x2500
4200x2600
x2500
4800x2800
x2500
5700x3600
x2500
Weight(KG)15002300350046006500850010000

Details
Washing part
Rinsing empty bottle, filling, and capping functions are integrated in one system, fully automatic synchronized working.Bottle
travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.

Filling part
Pressure or vacuum filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.
Capping part
No Bottle No Filling, no caps no capping, no caps auto stops.When bottle jam auto stop, machine accident auto stop.Open the window when machine running, machine auto paused.Heavy duty stainless steel filling pump & rinsing pump.Food grade 316L or 304stainless steel contact parts, smooth & fine Polish, no dead angles.
Transmission
Adopt screw feeding bottles, different bottle diameter with different feeding bottle screw.
Main transmission adopting frequency conversion motor will be sent to decelerate box through stair belt, and then lead the whole machine running.
cleaning cup

Related product

Pure water, mineral water

5L big water

carbonated drink, soft drink

juice, hot beverage

tin can soft drink

cooking oil

Company Information
Our Services
Customer's service:
1.Grandee company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. Grandee company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3. Grandee company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle
material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance
service.
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
