PLD3020N FINCM Steel Structure fabrication CNC Precision Drilling Machining

Product Description

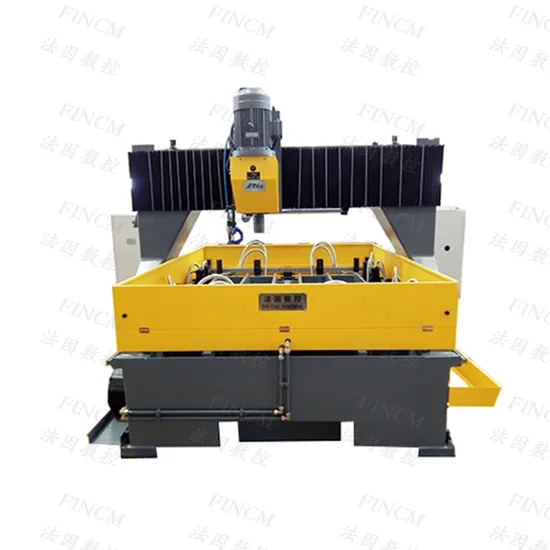

PLD3020N FINCM Steel Structure Gantry CNC Metal Vertical Drilling Machine3000mm*2000mm

Product Description
Product Parameters

Main Technical Specifications:

Workpiece size	Material overlap thickness	Max. 100mm
	width × length	3000mm×2000mm One piece
		1500mm×2000mm two pieces
		1000mm×1500mm 4 Pieces
principal axis	quickly change the chuck	Morse 3 and 4 taper holes
	Drill diameter	Φ12-Φ50mm
	Variable speed mode	Continuously variable speed of frequency converter
	speed	120-560r/min
	Stroke length	180mm
	Machining feed	Stepless hydraulic speed regulation
Workpiece clamping	Clamping thickness	15-100mm
	Number of clamping cylinders	12
	Clamping force	7.5KN
	Clamp open	Foot switch
Coolant	mode	Forced circulation
hydraulic pressure	system pressure	6MPa(60kgf/cm2)
	Tank capacity	100L
air pressure	Gas source	0.6MPa(6kgf/cm2)
electric machinery	Spindle motor	5.5kW
	Hydraulic pump motor	2.2kW
	Chip conveyor motor	0.4kW
	Cooling pump motor	0.25kW
	X-axis servo motor	1.5kW×2
	Y-axis servo motor	1.0kW
Machine dimensions	long × wide × high	About 6183×3100×2850mm
weight	host	About 5500kg
	Chip removal system	About 400kg
Number of control axes	X. Y (point control) Z (spindle, hydraulic feed)
trip	X-axis	3000mm
	Y-axis	2000mm

List of Free Accessories to be shipped together with the machine:

NO.	Code	Name	Qty	Note
1	KHQ50.1	Quick change chuck Quick change chuck	1 set	Already installed on the spindle
2	KHQ50.1-6	Spindle arbor	2 pcs
3		4/3 Diameter reducer sleeve	1 piece
4		4/3 Lengthened reducing sleeve	1 piece
5		"O"ring 16×2.4mm	5 pcs
6		"O"ring 11×1.9mm	5 pcs
7		"O"ring 50×3.1mm	1 piece

Key Outsourced Components List:

NO.	Name	Brand	Country
1	Linear guide rail	CSK/HIWIN	Taiwan (China)
2	Hydraulic pump	Just Mark	Taiwan (China)
3	Electromagnetic valve	Atos/YUKEN	Italy/Japan
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China

Applicable Industry
This machine purpose is mainly used for drilling plate workpieces in steel structures such as construction, coaxial, iron tower, etc., and can also be used for drilling tube plates, baffles and circular flanges in boilers, petrochemical industries.
