Thin Film Absorber System Concentrator Solar Thermal Collector Solar Absorber

Product Description

Product Description
The key accessory of every solar collectors is the solar absorber. Its efficiency is given by a high absorptive and low emission rate.

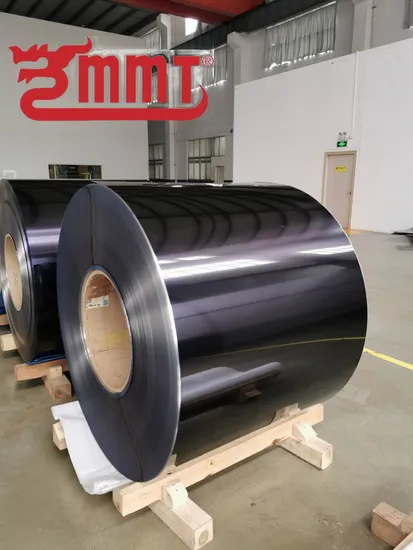

SMMT high selective solar absorber "Thermal Collector is manufactured by advanced PVD coating devices, which achieve absorptive rate up to 95% and heat emission lower than 5%. It is also optimized to the wavelengths of sunlight with the high intensity to bring the maximum heating performance.
SMMT high selective solar absorber "Thermal Collector" is made with continuous air-to-air producing vacuum coating equipment, which give us the possibility to coat with high efficiency and speed. It combines sputter process and electron beam technology to form the selective absorber layers on metal strips.
This kind of PVD still achieves both the high quality of layers and the environment protection.
SMMT will be a reliable long-term cooperation partner for flat plate solar water heater and evacuate tube water heater supplier.
Product & Applications
Product Parameters

Product Name	High Selective Solar Absorber	"Thermal collector"
Substrate Specification	Material	Aluminum Strip
	Width[mm]	1000
	Standard Thickness[mm]	0.3-1.0
	Standard Alloy	1050
	Temper	H18
	Density [g/cm3]	2.7
	Thermal Conductivity [W/(m.K)]	~230
	Tensile Strength [N/mm2]	>=135
	Yield Strength [N/mm2]	>=100
Optical Property	Solar Absorptive Rate(%)	95±2
	Heat Emission Rate(%)	5±2
Payment Term	TT, LC
Packing	1. Product surface attached with proctective film 2. Plastic film sealed 3. Anti-collision foam 4. Drying agent 5. Seaworthy exporting wooden case
Delivery Time	Future goods: 25-35 work days; Ready Stock: 7- 10 days

---
