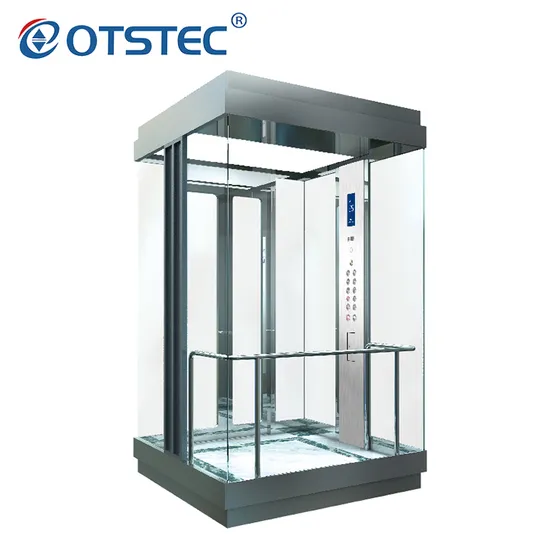

Factory Manufacturer Panoramic Lift Glass Elevator with Sightseeing Elevator

Product Description

Product Description

Product Parameters

Small Machine Room
Loading Passenger	Loading Capacity	Speed	Car Size	Shaft(Min.)	Overhead Height	Rise(Max.)
Passenger	(Kg)	(m/s)	W*D*H(mm)	W*D(mm)	W*D(mm)	HQ(Max.)(m)
6	450	1.0	1100*1100*2400	1700*1800	4500	45
8	630	1.0-1.75	1400*1100*2400	2000*1800	4500	95
10	800	1.0-2.5	1400*1300*2400	2000*2000	4500	120
13	1000	1.0-3.0	1600*1500*2400	2200*2200	4500	150
16	1250	1.0-4.0	1950*1400*2400	2600*2100	4500	180
21	1600	1.0-4.0	1950*1750*2400	2600*2450	4500	180

Machine Room less
Loading Passenger	Loading Capacity	Speed	Car Size	Shaft(Min.)	Overhead Height	Rise(Max.)
Passenger	(Kg)	(m/s)	W*D*H(mm)	W*D(mm)	W*D(mm)	HQ(Max.)(m)
6	450	1.0	1100*1100*2400	1900*1500	4500	45
8	630	1.0-1.75	1400*1100*2400	2200*1500	4500	95
10	800	1.0-2.5	1400*1300*2400	2200*1700	4500	120
13	1000	1.0-2.5	1600*1500*2400	2400*1900	4500	150
16	1250	1.0-2.5	1950*1400*2400	2750*1800	4500	180
21	1600	1.0-2.5	1950*1750*2400	2750*2150	4500	180

Production Process
Packaging & Shipping
Certifications
Exhibitions
Our Advantages
FAQ

Q1. What is your terms of packing?
A: Generally, we packed our goods by solid wood case,
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 25 to 30 days after you confirm the elevator (escalator) specification and drawing, and receiving your advance payment.
Q4. Do you test all your goods before delivery?
A: Yes, for elevator,we will assemble the cabin,cabin frame,door operator ,for escalator,we will test to run 72 hours before delivery,at the meanwhile,we will send you many test pictures.
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
