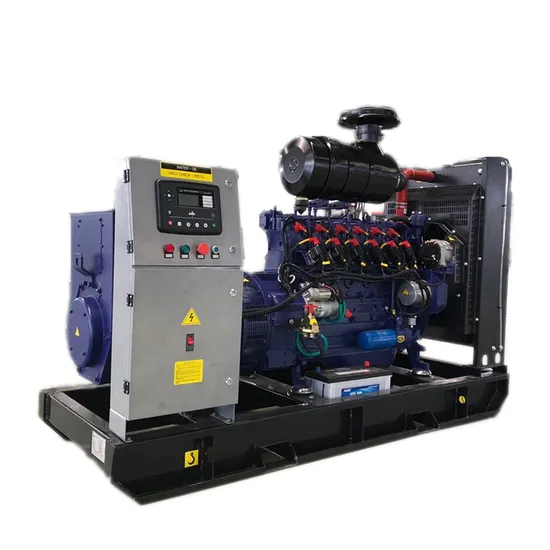

Water Cooling Low Noise 68kw 85kVA Methane Gas Powered Biogas Generator Set

Product Description

Water Cooling Low Noise 68kw 85kva Methane Gas Powered Biogas Generator Set
Product Parameters

Genset Model	68GF-CSZ
Rated Power	68KW / 85KVA
Rated Speed/ Rated Frequency	1500 rpm /50Hz
Rated Voltage	400/230V
Power Factor	0.8
Phase/Wire	3Phase/4Wire
Rated current(A)	123
Gas Type	Biogas
Overall Size (mm)	2350*1000*1400
Weight (kg)	1450
Air intake way	Turbo intercooled
Cooling way	Closed cooling cycle
Cylinder	6
Displacement(L)	5.9
BorexStroke (mm)	102*120
Max.standby power @50Hz	75kw / 93.75kva
Rated Power	68kw / 85kva
Excitation way	Brushless and self exciting
Voltage control	AVR
Insulation class	H
Protection	IP23

Remarks: 1. Fuel requirements :methane content≥92% ( or Gas low heat value ≥ 33 MJ/Nm3 ), sulfur content≤200PPM, impurities size≤5μm, impurities content≤50mg/Nm³, water content≤40 g/Nm3 ;2. Manufacturing standards:ISO8528-5,GB/T2820.5-2009,GB/T22343-2008;3. Every gas genset have been pass the test under the load of 0%,25%,50%,75%,100% and the response ability of static, dynamic test, all the protection device and control system are pass strict inspection before they leave factory.

Detailed Photos
Company Profile
Certifications
FAQ Q: What's your warranty period?
A: Since genset reached the agreed destination, its main parts will be guaranteed within 12months or 1000hours(subject to the earlier mature term).
Q: What's your delivery time?
A: Normally delivery time is 30 days, and if your order is urgent, we can communicate then speed it up.Q: Do you accept OEM service? A: Yes, we accept OEM.
Q.What is the difference between Prime power and Standby power?A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.Standby power is the limit value of maximum output for emergency use. Overloading is prohibited.

---
