Top 1 Fire Fighting Equipment Manufacturer XCMG Official 42m Used Elevating Aerial Work Platform Fire Truck Dg42c1 for Sale

Product Description

Top 1 Fire Fighting Equipment Manufacturer XCMG Official 42m Used Elevating Aerial Work Platform Fire Truck DG42C1 For Sale

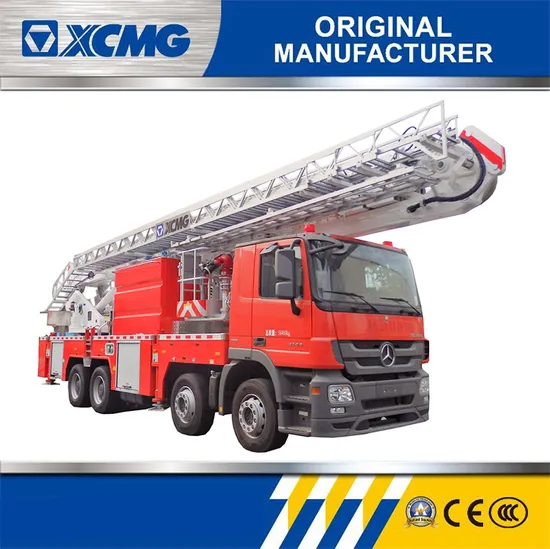

DG42C1 elevating platform fire truck is the main battle vehicle integrates functions of fire tanker, aerial spray truck, foam truck and ladder truck, which is widely applied in fire fighting and rescue operation in cities and towns, mine, oil field and plant as well as other middle-high buildings, in addition, it also as the first choice for medium and high-rise building fires, rescue of persons in distress and properties.
The ladder truck adopts the chassis of Germany Benz Actros4144, and full slewing, straight telescopic boom plus folding boom structure is adopted in the superstructure. Electric control and hydraulic drive adopted in each moving mechanism brings the vehicle features of easy operation, flexible movement, safety and reliability and strong practicability. Deceleration and stopping at limit position are controlled by computer automatically, which makes operation quick, labor-saving, convenient and stable, also brings large speed regulating range, flexible fine motion and exact movements. With the effective cooperation of straight telescopic boom plus folding boom, it is with excellent aerial obstacle-corssing capacity, which has the wider operation scope than the straight boom fire truck.
[Advantages and highlights]
1. DG42C1 chassis adopts class-II chassis of Germany Benz Actros 4144/8×4, which is in line with the emission standard of National IV, with advanced performance, large bearing capacity, sufficient margin of power and specific power of 8.40.
2. Complete function of fire-fighting system.
Advanced system configuration PSP1500 pump of American Darley and the platform water monitor is the 3578+3626 electronic-controlled fire monitor of American AKRON are adopted. The water pump is driven by the full power takeoff with reliable performance which is suitable for long-time operation.
3. Based on the distributed control technology of PLC and CAN bus, the elevating angle and extension of whole vehicle adopts the new and reliable detection, which may realize the automatic reliable leveling of substructure, regional amplitude control, platform load weighting, platform ultrasonic anti-collision detection, posture dynamic monitoring of upper and substructure, provision of abundant information of HMI with good leveling mobility and stable and impact-free superstructure movement.
4. Variable displacement piston pump+ LS load-sensitive electro-hydraulic proportional control system should be adopted in hydraulic system with good control performance.
5. Professional appearance molding design with pretty appearance is adopted in the complete machine, and the operation and usage is humanization with good effect.
6. It is equipped with manual and automatic leveling functions, with high leveling accuracy and fast speed.
[Product Parameter]

Main Performance Parameters of Vehicle
Boundary dimension: (Length × width × height)	12580×2500×4000mm
Full mass	38100kg
Maximum speed	≥100km/h (electric speed limit)
Minimum turning diameter	≤23m
Approach angle	≥18°
Departure angle	≥9°
Maximum gradeability	≥25%
Outrigger span	Longitudinal span	5850mm
	Horizontal span	6000mm
Work platform load	400kg
Maximum working height	42m
Maximum working radius	20m
Elevating angle of boom	The elevating angle of telescopic boom is -10°-83° The elevating angle of folding boom and telescopic boom is 0°-170°
Rotation scope	360° full-rotation
Spread time of outrigger	≤35s
Time for lifting the boom to rated height and rotating 90°	≤160s
Maximum slewing speed	0.5~1.5r/min
FIRE FIGHTING PUMP	Rated flow	50 L/s
	Rated pressure	1.7 MPa
fire fighting gun	Model	3578+3626	PS30-50D
	Rated flow	48 L/s	40 L/s
	Rated pressure	1.0 MPa	1.0 MPa
	Range	65m	60m

[Product Picture]
