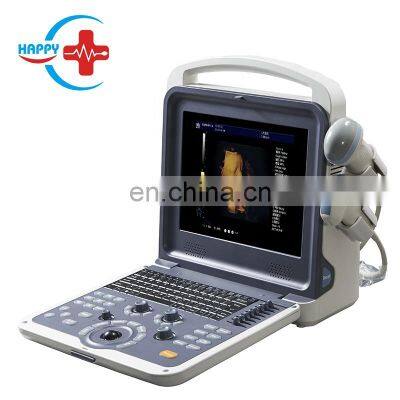

HC-A011 Portable color doppler ultrasound price system/color doppler ultrasound equipment
Product Description
Features for 4d ultrasound machine portable:
1. 12 inch high resolution medical LED monitor ,the weight is 6.5KG,easy to take
2. Portable clamshell design, compact, smart and easy to take
3.Satellites orbiting type control panel and backlit keyboard design
4. Built-in floating standard keyboard
5. Unique design for power key and reset key
6. Friendly user’s operation interface
7.High resolution 2D image and sensitive Color Doppler blood flow imaging system
8. Intelligent one touch optimization
9.Can be matched with several kinds of probes (such as convex probe, linear probe, transvaginal probe, phased array probe…)
10. Abundant peripheral (Such as USB, DICOM 3.0, VGA…)
11. Built-in SSD (Solid State Disc) improves the stability and reading speed
12. Built-in large capacity rechargeable Li-ion battery, standby time is up to 2 hours (option)
13.Can be updated to 4D (option)
14. Optional accessory filter
15. Independent research, can change the software according to customer demanding, can cooperate by OEM.
16. Supply good after-sales service, our own service engineer to solve the problem as soon as possible
17. Supply factory visiting
18.PC system(Windows XP), can update the system in customized, can match with any types of printer
19. Can use the key to overturn the 4D image in X Y Z director.
Technical specifications:
Displaying mode
| B,B/B,4B,B/M,M,PW,B/C,B/C/D,B/D, duplex, triplex, CFM,4D
|
Signal processing:
| Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields
|
Image processing:
| THI
PSHI TM broadband multi-frequency harmonic image
Speckle-reduction
Power adjustable
Smoothing function
iBeam TM intelligent space image technology
iZoom TM undistorted full screen image
Free Xros M
Engineer control technology with low power consumption
Edge enhancement Image optimizing disposal
One-key optimization
Image conversion
Doppler Sound output volume adjustable
Wall filter adjustable
Base line adjustable
Sampling frame adjustable
Spectrum sampling volume adjustable
Spectrum sampling volume angle adjustable
PRF adjustable
|
General measurement
| B mode-distance, circumference, area, volume, angle, area Red, Diam Red
M mode- distance, time, velocity, heart rate
|
Abdomen measurement
| Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen
|
OB packages
| EDD table :GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC, APAD, Cxlength.
|
Gynecological packages
| Uterine measurement (Uterine diameter, uterine endometrial); left/right ovary measurement; left/right sacculus measurement; Cervix; Uterine depth
|
Urology packages
| Left/right kidney measurement, Volume, Cortex
|
Small parts Measurement
| Left/ right thyroid, volume, Isthnus and calculating report
|
Cardiac Measurement Package
| Heart rate, Valve speed, LV, aortic, mitral, ventricular
|
Skeletal & Muscles
| Skeletal & Muscles, distance, area, Hip angle
|
Vascular
| Senosis D, senosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICA
|
Scanning depth
| 300mm
|
Body mark
| Abdominal ,Cardiology, Gynecology, Obstetrics, Small parts
|
Cine loop
| Automatically & manually, speed control
|
Image storage format
| BMP, JPEG, PNG
|
Input/output ports
| VGA, USB port, DICOM port
|
Standard Configuration
| Main unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe,2 probe connectors, hard disk,battery,DICOM 3.0
|
Options
| 6.5Mhz transvaginal probe, 3.5Mhz micro-convex probe, 3.5Mhz phased array probe, 4D volume probe, trolley, USB laser printer and Video printer
|
Smart design:
The familiar PC system makes the system intuitive and easy to use. Flexible design allows system to be used conveniently.
Probes information:
Configuration
| Probes
| 5 Steps Multi-frequency
| Image
|
Standard:
| 3.5Mhz abdominal probe
| 2.0, 3.0, 3.5, 4.0, 5.5Mhz
| |
| 7.5Mhz linear probe
| 6.0, 6.5, 7.5, 10.0, 12.0Mhz
|
|
Options:
| 6.5Mhz transvaginal probe
| 5.0, 6.0, 6.5, 7.5, 9.0Mhz
| |
| 3.5MHz micro-convex probe
| 2.0, 2.5, 3.5, 4.5, 5.0Mhz
| |
| 3.5Mhz phased array probe
| 2.0, 3.0, 3.5, 4.0, 5.5Mhz
| |
| 4D volume probe
| 2.0, 3.0, 3.5, 4.0, 5.5Mhz
| |
Pictures for 4d ultrasound machine portable:
Packaging & Shipping
Company Information
FAQ
1. How to place order of 4d ultrasound machine portable ?A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For 4d ultrasound machine portable product,What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our 4d ultrasound machine portable , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For 4d ultrasound machine portable , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity.
For 4d ultrasound machine portable , the delivery time is 10 working days.
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
>>
