Vertical Machining Center CNC Vertical Milling Machine Vmc1580 4 Axis CNC Milling Machine with Bt50 Spindlevertical Machine Centermachine Tool

Product Description

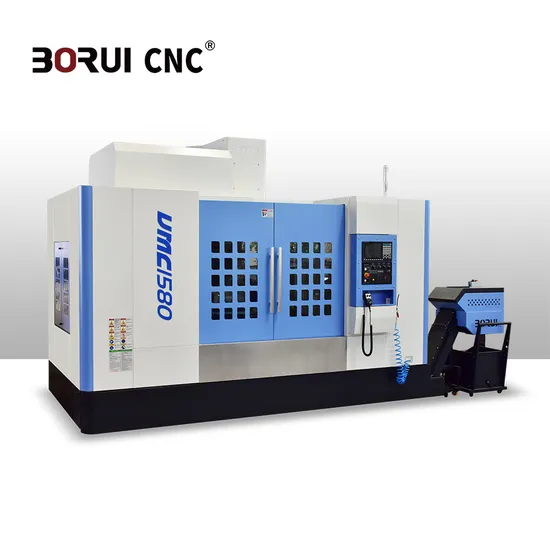

Hot Sale CNC Vertical Milling Machine VMC1580 4 Axis Cnc Milling Machine With BT50 Spindle
Product Description
Main Features of CNC Vertical Machining Center:1. Rigid base with integral structure adopted2. Good durability with cast iron machine bed made through super audio quenching3. Good dynamic performance with advanced guide rail laminating technology4. High precision, high-rigidity spindle, high speed5. Sufficient precise lubrication with automatic lubrication system6. Row knife structure which can change knifes very fast, high positioning accuracy and simple maintenance7. Wide range of machining products due to the travel distance of X direction is up to 270mm and variety of knife tools can be installed on the machine tool8. Spring chuck with high accuracy and high efficiency9. Good protection function with fully-closed safe glass window10. Modular design and optional accessories available on customer's needs

Product Parameters

Model	Unit	VMC1580
working tale size	mm	800x1700
X/Y/Z travel	mm	1500/800/700
Distance between spindle end and table	mm	170/840
Distance between spindle center and column guide way	mm	810
Maximum weight of working table	kg	1500
table-T-slot	mm	5-22-135
X/Y/Z axis rapid feed	mm/min	15/15/12
three axis working rapid speed	mm/min	5000
X.Y.Z axis screw mandrel size	mm	6310/6310/5010
positioning accuracy	mm	±0.001
repeat positioning accuracy	mm	±0.0075
spindle speed	rpm	6000
spindle taper	mm	BT50
control system	/	MITSUBISHI-M70VA/FANUC0i-mate-MD
torque force of spindle motor	nm/kw	95.5/18.5
torque force of X.Y.Z motor	nm	37.2-122
pneumatic source requirement	Kg/Cm2	6
power consumption	kva	30
machine size	mm	4300*3200*3100
machine weight	kg	13000

Detailed Photos

After Sales Service
paching shiping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.4. What is your trade terms?A : FOB, CFR and CIF all acceptable.5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .6: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )

---
