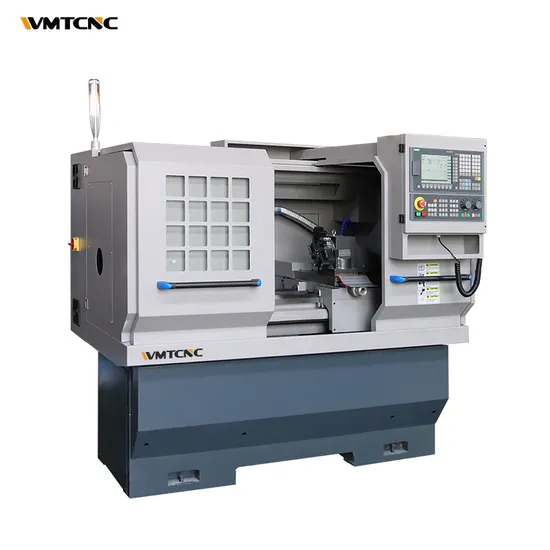

New CNC machinery flat bed cnc machine cnc lathe CK6432

Product Description

Product Description
CNC machinery flat bed mini cnc machine CK6432 cnc precision lathe main features:
1. High precision CNC flat bed lathe with hard rail.
2. The bed ways are induction hardened, with hardness around HRC50.
3. Spindle with high precision bearings ensure the rigidity and precision.
4. Good quality grinding grade ball screw ensure positioning accuracy is more stable.
5. Monoblock cast iron base ensure high rigidity of the whole machine.

Specification	CK6432
Capacity
Chuck size	8''
Max. swing dia. over bed	360mm
Max. swing dia. over slide	155mm
Distance between center	500/750/1000mm
Width of bed	260mm
Spindle
Spindle speed range	150-2200 rpm
Spindle bore	Φ60mm
Max. dia. of through-hole	Φ50mm
Spindle nose	A2-6
Spindle taper	MT6
Axis
X axis travel	350mm
Z axis travel	500/750/1000mm
X/Z axis rapid traverse	6/8m/min
Turret
Type	Electrical type
No. of tool stations	4,*6,*8 position
Max. section of tool	4P (20x20mm),*6P,8P (16x16mm)
Tailstock
External diameter	Φ50mm
Travel of tailstock quill	110mm
Taper of tailstock quill	MT4
Motor
Spindle motor power	4kw
Coolant pump power	120w
Machine Dimensions
Overal dimension (L×W×H)	1800/2060/2320x1200x1600mm
Packing size(L×W×H)	920/2250/2500x1460x2000mm
N.w	1300/1450/1600kg
G.w	1450/1650/1800kg

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
