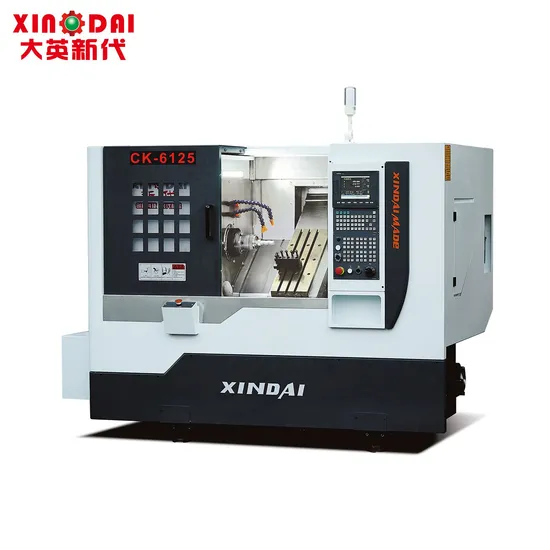

Daying Xindai 35° Inclined Bed Knife Setting Machine Ck6125
US$20,000.00
1-2 machine
US$19,500.00
3-4 machine
US$19,000.00
5+ machine
Basic Info.
Model NO.
CK6125
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.03~0.04(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
Specification
1860*1300*1700
Trademark
xindai
Origin
Foshan, Guangdong
Production Capacity
500
Product Description
1. The machine features a horizontally positioned, high-rigidity cast iron bed with a compact gantry design structure and horizontal guide rails, making it suitable for high-speed, high-strength cutting while maintaining excellent reliability and accuracy retention. The 35° inclined bed design facilitates easy loading and unloading of workpieces and ensures smooth chip removal. 2. The spindle is highly precise and rigid, allowing for stepless speed regulation and constant speed cutting with rapid start-up. 3. The main transmission system of the machine tool is driven by an AC servo motor, utilizing a high-efficiency synchronous belt to directly drive the spindle, thereby avoiding noise issues associated with gearbox transmission chains. 4. The X/Z axis utilizes servo motors and directly connected ball screws to achieve high feed accuracy and obtain higher machining precision. 5. Each lubrication point can be quantitatively lubricated to control temperature rise and thermal deformation effectively. 6. A T-type tool rack reduces tool change time while offering various tool arrangement combinations to improve production efficiency. 7. Full internal protection effectively isolates important components from the processing area, providing better resistance against oil, water, dust effects for extended machine service life. Company Profile
