Z3050X16 Hydraulic Radial Drilling Tapping Machine

Product Description

Product introduction
1.The main key pieces of high strength cast iron and special steel.
2.By the specialized equipment to ensure continuous processing, sophisticated infrastructure components.

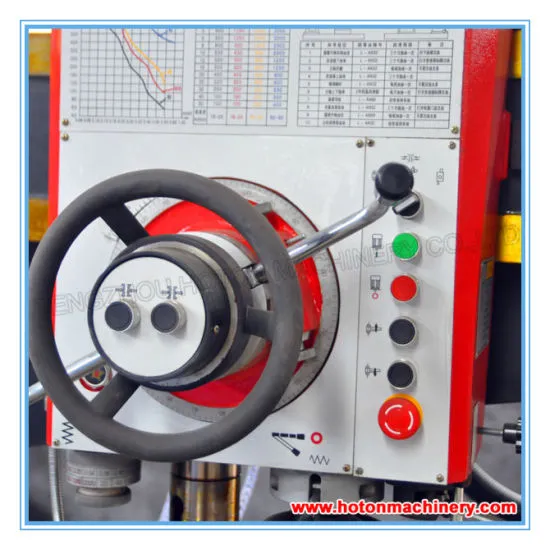

3.Spindle positive, parking ( brake ), transmission, free action, with a handle control, operate more conveniently and quickly.
4.Rocker guide rail, the outer column surface, spindle, spindle sleeve and the inner and outer column rotary raceway are conducted quenching treatment, can maintain the stability of machine tool accuracy, prolongs the service life.
5.Have good safety protection device and the outer column protection.
6.The structure design and in the manufacturing process, but also adopted a series of effective measures, so that the precision of the machine tool durability and the service life of the whole machine are enlarging.
7.The new coating technology and the continuous improvement of appearance display style of the times.

Specification	Units	Z3050×16
Max. drilling diameter	mm	50
Distance between spindle axis and column	mm	350-1600
Distance spindle nose and work surface of base	mm	320-1220
Rocker arm lifting distance	mm	580
Rocker arm lifting speed	m/s	0.02
Spindle travel	mm	315
Spindle taper	Morse	5
Range of spindle speeds	r/min	25-2000
Number of spindle speeds	step	16
Range of spindle feeds	mm/r	0.04-3.20
Number of spindle feeds	step	16
The maximum torque of the spindle	N.M	500
Spindle maximum feed resistance	N	18000
Table size	mm	630×500
The spindle box of horizontal moving distance	mm	1250
Spindle motor power	kw	4
Hydraulic clamping motor power	kw	0.75
Cooling pump motor power	kw	0.09
Arm lift motor power	kw	1.5
Machine weight	kg	3500
Overall dimension	mm	2500x1070x2840

Contact Us:

Miss Wynn Sales ManagerTENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 16678336698 hotonmachinery.en.made-in-china.com

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.

---
