3015 Factory Price 1500W 3000W 4000W 6000W Fiber Laser Cutting Machine for Metal Iron Carbon Stainless Steel

Product Description

Product Description

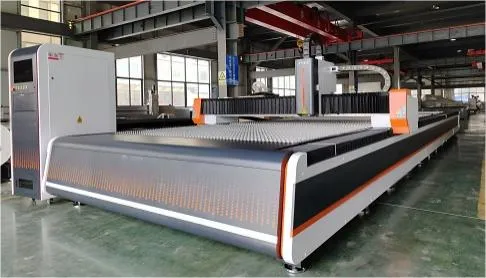

3015 Factory Price 1500W 3000W 4000W 6000W Fiber Laser Cutting Machine for Metal Iron Carbon Stainless Steel
Industrial heavy-duty steel structure and CNC 5 axis machining center to ensure accuracy and stability.
Imported servo drive system and imported motor reducer, fast running speed and strong stability.
Taiwan guideway and high precision grinding rack are used to ensure the long-time processing accuracy of the equipment.
Professional laser cutting system with complete functions and simple operation.
Suitable for advertisement marking, sheet metal processing, electric power, hotel kitchen equipment, hardware products, electrical equipment, precision parts and other industries.

MAX laser power
Small size, light weight, easy to move; easy integration; high power, excellent beam quality; low energy consumption; good stability; suitable for different applications; simple operation; no spare parts requirements, maintenance-free.

Raytool cutting head
Laser head through the automatic sensor to sense the distance of the metal surface being cut, and data transmission to the drive controller; follow-up laser head and the distance between the cutting plate surface, can automatically maintain a constant, avoid the metal surface bump caused by cutting.

Working table
Unique pointed rack design, very suitable for cutting alloy sheet metal, and equipped with positioning ruler, making feeding, parts and other operations more convenient and fast.

Servo Motor
Servo motor adopts closed-loop control method to ensure accurate positioning and dynamic response of optimal acceleration, which makes the automatic positioning mechanism run smoothly, reliably and maintenance-free.
X, Y, Z axis high power motor drive; acceleration can reach 1.5G.


Taiwan Square Rail
Higher speed, lower noise volume, self-contained dust to ensure high accuracy and long service life

1.5kw		Material type		carbon steel						stainless steels				aluminium		brass		copper (pure copper, as opposed alloy)
Cutting speed m/min		Material thickness (mm)		O2		helium		Air		N2 nitrogen		Air		N2 nitrogen		N2 nitrogen		O2 Oxygen
				(Oxygen orthocaloric)
		1		6.0-8.0		18.0-20.0		18.0-20.0		18.0-20.0		18.0-20.0		18.0-20.0		18.0-20.0		/
		2		5.0-6.0		8.0-10.0		8.0-10.0		8.0-10.0		8.0-10.0		10.0-14.0		10.0-12.0		/
		3		3.8-4.2		/		/		5.6-6.7		5.6-6.7		6.0-8.0		4.0-5.0		/
		4		3.0-3.4		/		/		3.8-4.0		3.8-4.0		3.0-4.0		2.5-3.0		/
		5		2.9-3.3		/		/		2.0-2.2		2.0-2.2		2.1-2.5		1.5-2.0		/
		6		2.4-2.6		/		/		1.2-1.4		1.2-1.4		1.7-2.0				/
		8		1.4-1.6		/		/		/		/		/		/		/
		10		1.0-1.2		/		/		/		/		/		/		/
		12		0.9-1.1		/		/		/		/		/		/		/
		14		0.7-0.9		/		/		/		/		/		/		/
		16		0.5-0.6		/		/		/		/		/		/		/
		18		/		/		/		/		/		/		/		/
		20		/		/		/		/		/		/		/		/
		Remarks: 1. The above cutting parameters are the factory test data of the equipment, for reference; (marked red is the limit)
		2. Auxiliary gas is air, with 15KW air system when cutting stainless steel.
3KW		Material type		carbon steel						stainless steels				aluminium		brass		copper (pure copper, as opposed alloy)
Cutting speed m/min		Material thickness (mm)		O2		helium		Air		N2 nitrogen		Air		N2 nitrogen		N2 nitrogen		O2 Oxygen
				(Oxygen orthocaloric)
		1		7.0-10.0		30.0-40.0		30.0-35.0		30.0-35.0		30.0-35.0		30.0-35.0		18.0-20.0		/
		2		5.0-6.5		15.0-18.0		15.0-18.0		15.0-23.0		15.0-23.0		12.0-18.0		9.0-12.0		/
		3		3.5-5.0		6.0-9.0		6.0-9.0		7.0-11.0		7.0-11.0		6.5-10.0		4.0-6.0		/
		4		3.0-4.2		/		/		4.0-6.5				3.5-5.0		2.5-4.0		/
		5		2.5-3.5		/		/		2.5-4.0				2.5-3.5		1.5-2.0		/
		6		2.4-3.0		/		/		2.0-3.2				1.8-3.0		1.0-1.3		/
		8		1.8-2.4		/		/		1.2-1.8				0.9-1.3		/		/
		10		1.2-1.8		/		/		0.5-0.8				0.6-0.8		/		/
		12		1.0-1.5		/		/		/				/		/		/
		14		0.8-1.0		/		/		/				/		/		/
		16		0.7-0.85		/		/		/				/		/		/
		18		0.6-0.8		/		/		/				/		/		/
		20		0.5-0.65		/		/		/				/		/		/
		Remarks: 1. The above cutting parameters are the factory test data of the equipment, for reference; (marked red is the limit)
		2. Auxiliary gas is air, with 15KW air system when cutting stainless steel.
4KW		Material type		carbon steel						stainless steels				aluminium		brass		copper (pure copper, as opposed alloy)
Cutting speed m/min		Material thickness (mm)		O2		helium		Air		N2 nitrogen		Air		N2 nitrogen		N2 nitrogen		O2 Oxygen
				(Oxygen orthocaloric)
		1		7.0-10.0		20.0-30.0		25.0-35.0		25.0-35.0				25.0-35.0		18.0-20.0		18.0-20.0
		2		5.5-6.5		16.0-19.0		16.0-19.0		17.0-25.0				16.0-20.0		13.0-15.0		9.0-12.0
		3		3.8-4.5		10.0-12.0		10.0-12.0		10.0-15.0				7.0-13.0		6.0-6.5		5.0-6.0
		4		3.3-3.8		4.5-7.0		4.5-7.0		5.0-7.5				4.0-5.5		4.0-4.5		3.5-4.5
		5		3.0-3.6		/		/		4.0-5.0				3.0-4.0		2.5-3.0		1.5-2.5
		6		2.6-2.9		/		/		3.0-4.0				2.2-3.5		1.7-2.0		/
		8		2.4-2.6		/		/		1.5-2.6				1.0-1.6		0.7-0.9		/
		10		1.8-2.1		/		/		0.8-1.3				0.6-1.0		/		/
		12		1.1-1.6		/		/		0.6-0.8				0.3-0.4		/		/
		14		0.8-1.0		/		/		0.2-0.3				0.2-0.3		/		/
		16		0.7-0.9		/		/		/				/		/		/
		18		0.6-0.8		/		/		/				/		/		/
		20		0.5-0.6		/		/		/				/		/		/
		Remarks: 1. The above cutting parameters are the factory test data of the equipment, for reference; (marked red is the limit)
		2. Auxiliary gas is air, with 15KW air system when cutting stainless steel.
6KW		Material type		carbon steel						stainless steels				aluminium		brass		copper (pure copper, as opposed alloy)
Cutting speed m/min		Material thickness (mm)		O2		Mix		Air		N2		Air		N2		N2		O2
				(Oxygen orthocaloric)		(gas mixture/nitrogen generator)
		1		7.0-10.0		30.0-50.0		30.0-50.0		30.0-50.0		30.0-50.0		30.0-50.0		30.0-50.0		23.0-25.0
		2		5.0-7.0		25.0-30.0		25.0-30.0		20.0-30.0		20.0-30.0		20.0-30.0		20.0-24.0		12.0-15.0
		3		4.5-6.0		15.0-17.0		/		15.0-17.0		15.0-18.0		15.0-17.0		12.0-15.0		6.0-8.0
		4		3.5-3.9		10.0-12.0		/		10.0-12.0		10.0-13.0		10.0-12.0		8.0-10.0		4.0-5.0
		5		3.2-3.5		6.5-7.3		/		6.5-8.0		6.5-9.0		6.5-7.3		5.0-6.5		2.5-3.0
		6		2.9-3.2		4.5-6.0		/		4.5-6.0		4.5-7.0		4.5-6.0		3.0-4.5		2.0-2.5
		8		2.5-2.7		/		/		3.0-3.5		3.0-4.0		3.0-3.5		1.2-1.8		1.0-1.5
		10		1.9-2.2		/		/		2.2-2.5		2.2-3.0		2.2-2.5		0.9-1.2
		12		1.8-2.1		/		/		1.6-1.9		1.6-2.0		1.7-1.9		/		/
		14		1.4-1.8		/		/		0.8-1.3		0.8-1.4		0.8-1.0		/		/
		16		1.3-1.6		/		/		0.7-0.9		0.7-1.0		0.6-0.8		/		/
		18		0.8-1.2		/		/		0.5-0.65		/				/		/
		20		0.6-0.8		/		/				/				/		/
		25		0.2-0.3		/		/		/		/		/		/		/
		Remarks: 1. The above cutting parameters are the factory test data of the equipment, for reference; (marked red is the limit)
		2. Auxiliary gas is air, with 15KW air system when cutting stainless steel.

Company Profile
About Us
Established in 1992, Tianyi has evolved over the past three decades to become a frontrunner in the welding and cutting industry. As a multifaceted welding conglomerate, Tianyi specializes in the development of cutting-edge welding technology, the crafting of intelligent equipment, and the advancement of superior welding products. Our extensive expertise spans the creation of internet-based welding software management systems, comprehensive training, certification consulting, and meticulous testing services. With eight subsidiary companies, three expansive manufacturing bases, and five state-of-the-art research and technology platforms, Tianyi is at the industry's forefront. We pride ourselves on our team of 300 technical experts and an impressive portfolio of over 100 patents. Generating sales exceeding 100 million dollars, Tianyi serves a vast clientele and collaborates with renowned corporations such as Panasonic (Tangshan), Fronius, and Messer, among others. Our brand enjoys a stellar reputation, both within China and internationally.
