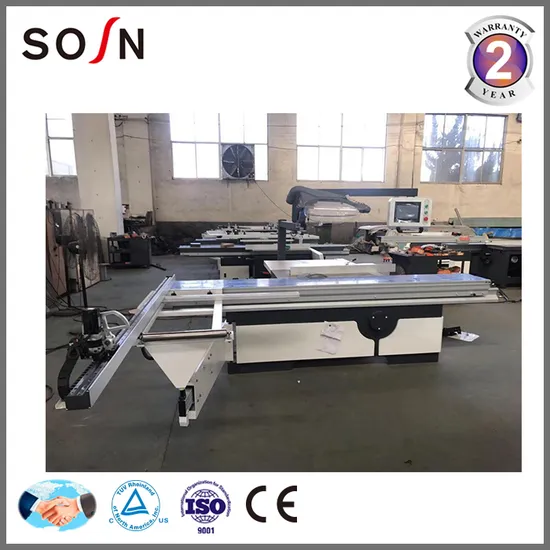

High Precision CNC Furniture Sliding Panel Table Saw

Product Description

Automatic cnc panel saw CNC-32TA
(Servo motor for two side ways can be selected)
Feature:
1. Automatic control for saw blade up and down.
2. Automatic control for saw blade tilt angle.
3. Automatic rip fence.
4. Cnc control for big guide ruler.
5. Linear guide inner structure, stable and precision.
6. Altendorf type sliding table, 3200*410mm.
7. European dust cover, Freud saw blade.
Technical parameter:

Dimension of sliding table	3200*410mm
Gross cut capacity	3200mm
Width of cut between saw blade and rip fence	1250mm
Saw blade diameter	300(250-400)mm
Height of cut (300mm)	80mm
Height of cut with saw blade 300mm at 45 degree	60mm
Speed of main saw spindle	4500/6000rpm
Main spindle diameter	30mm
Tilting saw blade	0-45 and 90 degree
Main motor	5.5kw
Scoring saw blade diameter	120mm
Speed of scoring saw blade	7000-8000rpm/min
Scoring spindle diameter	20mm
Scoring motor	1.1kw
Gross weight (with wooden package)	950kg
Packing size of the machine body(L*W*H)	2200*1150*1100mm
Packing size of the sliding table(L*W*H)	3350*480*320mm

This CNC panel saw is all automatic except scoring saw and sliding table.
Details description:

	The heavy-duty body, the gantry milling process is stable and the surface is sandblasted and plastic sprayed, which is simple and elegant without paint falling, ensuring the durability of the machine.
	Automatic saw blade up and down
	A type sliding table, 410mm width
	Automatic degree setting the height of the saw blade, the cutting angle, the position of the ruler, and the position of the ruler are accurately displayed on the LED panel.
	Automatic rip fence
	cnc control position ruler
	Aluminum shell copper core 5.5kw+1.1kw motor, fast heat dissipation to ensure long-term processing and operation, equipped with linear guide electric lifting structure, making it stable and improving cutting accuracy, electric lifting structure improves production efficiency.
	Equipped with European dust hood and pneumatic press device.

Should you have any need of this machine, please contact me~
