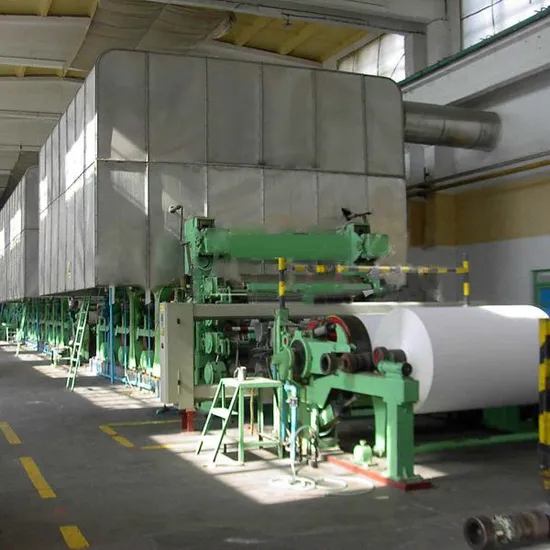

1700mm Printing Paper & A4 Paper Making Machinery

Product Description

China Supplier 1700mm Printing Paper & A4 Paper & Notebook Paper Making Machinery

Technical Parameters:
1.Raw material: Virgin wood pulp, white waste paper
2.Output paper : A4 paper, printing paper, notebook paper,writing paper
3.Capacity: 10T/D;
4.Output paper weight: 60-90g/m2;
5. Net paper width: 1700mm;
6.Width of Wire: 2050mm
7.Rail gauge:2600mm;
8.Drive way: AC inverter speed adjusting, sectional drive

Main Structures:
1. Wire section
Single wire design, wire table length 8.5m, frame welded by #45 steel, and covered by stainless steel board. 1 set of open-type stainless steel flow box with double evener rolls. This part includes forming board, vacuum suction boxes, wire adjusting device, cantilever type wire-changing device
2. Press section
Φ600mm×2000mm×2600mm natural marble roll 2 set, Φ550×2000mm×2600mm rubber roll 2set, rubber shore hardness 95ºC±2,
3. 1st dryer section
Φ2000mm×2000mm×2600mm alloy dryer 2 sets, Φ450mm×2000mm×2600mm touch roll 1 set, Φ400mm×2000mm×2600mm reverse press roll 1 set, scraper blade 2 sets, equipped with dry wire device, double layer dryer hood 1 set
4. Sizing section
Sizing machine 1 set with glue preparing system
5. 2nd dryer section
Φ1500mm×2000mm×2600mm alloy dryer 4 sets, scraper blade 4 sets, equipped with dry wire device
6. Calendering section
Double roll calender machine 1 set
7. Winding section
Horizontal pneumatic winding machine 1 set
8. Rewinding section
Up-feed frame type rewinding machine 1 set
Company Information Zhengzhou Dingchen Machinery Co., Ltd is a professional paper machine manufacturer integrated with scientific research, design, manufacturing, installation and commission. Focused on R&D and production, the company has over 30 years' experience in paper machinery and pulping equipment production. The company has a professional technical team and advanced production equipment, with over 150 employees and covering an area of 45, 000 square meters.
The company's leading products include various types of high speed and capacity test liner paper, kraft paper, carton box paper machine, cultural paper machine and tissue paper machine, pulping equipment and accessories, which are widely used in the production of packaging paper for various items, printing paper, writing paper, high grade household paper, napkin paper and facial tissue paper etc.
Based on high quality products and service, the company has been recognized by overseas customers and markets, its products has been exported to Pakistan, Uzbekistan, Turkmenistan, Bangladesh, Cambodia, Bhutan, Israel, Georgia, Armenia, Afghanistan, Egypt, Nigeria, Kenya,
Burkina Faso, Sierra Leone, Cameroon, Angola, Algeria, El Salvador, Brazil, Paraguay, Colombia, Guatemala, Fiji, Ukraine and Russia etc.

Packaging & Shipping
Our Services

FAQ

---
