Quality Bottle Can Liquid Oil Cream Filling Machine with Capping Labeling Line

Product Description

Product Description Adopting servo piston filling, our automatic oil cream liquid Filling Machine is suitable for auto bottle/cans/jars packaging of various foamy or unfoamy liquid, viscous liquid, paste, cream,and sauce filling in foodstuffs, drinks, cosmetics, pharmaceuticals, daily chemicals fields, like bottle filling of liquid detergent, oil, syrup, ketchup cream, cosmetics, gel, syrup,pharmaceutical liquid, disinfectant, pesticide etc. with humanized design, it's good to operate & easy to maintain.
(Baoneng Machinery focus on various filling machines, our overlofwing filling, gravity filling, weighing filling, pump filling, flowmeter filling, auger filling and different models can be avaialble for your choice, welcome to contact for detailed communication & professional recommendation)
Our Advantages 1. Adopting servo piston to do measuring, suitable for both liquids, gel & cream, with high filling precision & filling efficiency; servo filling nozzle system can be equipped accordingly if needed, it's especially good for some foamy products accurate filling.
2. Filling volume can be adjusted directly via touch screen, formula saving, easy to operate.
3. With humanized design, piston cylinders & nozzles are quick-joint connected, easy to dismantle, wash & maintain.
4. Linear bottle-enter-exit, it is easy & quick to adjust whole system to meet different bottles production.
5. PLC control system & touch screen operation panel; no filling without bottles; auto counting, one-button washing, with high degree of automation.
6. Auto liquid processing mixing equipment & auto capping labeling packaging line equipment are available, welcome to inquire for one-stop service and purchase.

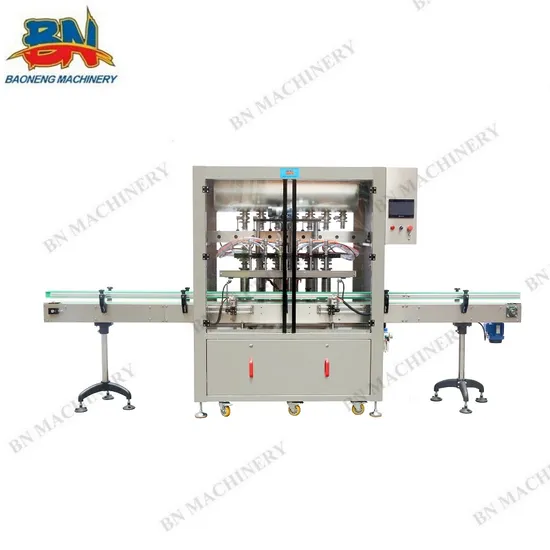

Detailed Photos auto 6-nozzle servo piston filler with acrylic glass hood fyi; mixing & heating hopper can be equipped accordingly

auto 6-nozzle servo piston filling machine + auto capper +labeller fyi (bottle washing + cartoning can equipped)
auto 6-nozzle servo piston filling machine without/with acrylic glass hood fyi
auto 6-nozzle servo piston filling machine details fyi
8-nozzle & 6-nozzle servo piston back-side fyi, with quick-released cotnacting parts, easy to maintain

auto 8-nozzle servo piston liquid detergent filling machine in filling line, design layout based on client's plant size
auto bottle liquid servo filling without hood + capping + carton sealing line fyi, cost-effective & easy to operate
auto expolosion-proof engine oil cleaner bottle filling + servo capping + 2-side labeling line delivery fyi
Product Parameters
materials to be filled, bottles, capacity, layout & required production process, plant layout size etc~

Item	BNALF-S4	BNALF-S6	BNALF-S8	BNALF-S12	BNALF-DS10
Filling nozzle	4	6	8	12	10 (dual-lane)
Filling scope	100-5000ml (customized)
Idea filing range	10-100ml \50-250ml\100-500ml\100ml-1000ml\500-2500ml\1000-5000ml
Capacity for 100ml	30-50BPM	50-70BPM	60-80BPM	80-100BPM	120-140BPM
Filling precision	≤±1%
Filling way	Servo piston filling (optional pneumatic piston)
Air pressure	0.4~0.6MPa
Voltage	220V 50/60Hz
Power	2kw	2kw	3kw	3kw	6kw
Noise	≤50dB
G.W.	400kg	500 kg	800 kg	1000kg	1200kg

Company Profile Guangzhou Baoneng Machinery supplys u professiona filling packaging turnkey project solutions & equipment
Welcome to inquire & visit our factory in Guangzhou China. Professionally customized machines based on your needs---
We warmly welcome all friends & clients to visit us in Guangzhou China to establish longterm friendly cooperation :)

---
