Tapeealer Sealing Box Carton Case Erector Machine with Hot Melt Glue

Product Description

Product Description
UCPACK case erectors: form carton boxes and seal the bottom flaps with either self-adhesive tape or hot melt glue. Case erectors are available in semi-automatic and automatic format, also the vertical and horizontal type.

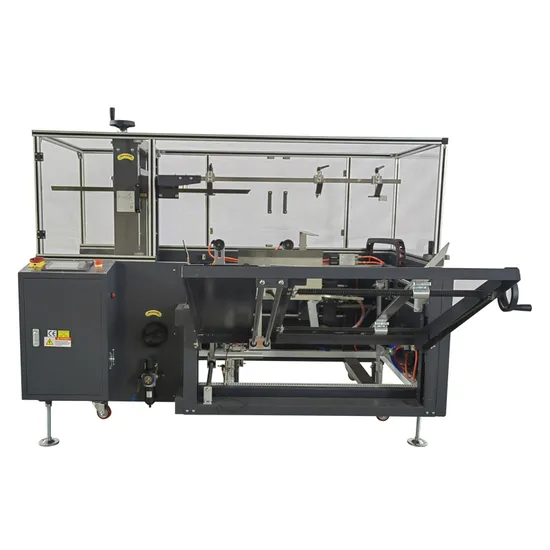

This automatic case erector UKX-4012 is forming boxes and sealing bottom flaps with seal-adhesive tape width (48,60,72)mm, length 1000 mm. Output up to 12cartons per minute. The basic structure consists of a folded boxes store, a system to open them, close the bottom flaps and seal the bottom and deliver the box mounted with a closed bottom and prepared to introduce products vertically.
The folded boxes located on the store of the machine are taken by a system of vacuum cups that open and place the boxes in the forming position. After that, the suction cups and an angled arm transports longitudinally through the machine for a fast close of the bottom flaps. Then the box is formed for either subsequent filling and sealing or also for bottom flaps sealing and subsequent filling.
Product Parameters

Model	UKX-4012
Output	10-12 cartons/min
Cartons store	100 pcs / 1000 mm
Carton size	300 mm < Length + width <1000 mm; Width + height <1000 mm; Height > 200 mm;
Power requirements	220V / 380V, 50/60Hz optional; based on the country of destination;
Air requirements	5.5~6 kg/cm²
Tape size	Width (48,60,72) mm x Length 1000m
Speed	20m/min
Table height	580-780 mm adjustable with heavy-duty peg legs
Machine size	L 2140 mm x W 2000 mm x H 1650 mm
Machine weight	About 450 kg
Options	Power (voltage);Automatic dimensional adjustment;Output motorized conveyor;Automatic carton sealer, carton strapper;Symmetrical version;Stainless steel material frame;Hot-melt glue type;

Features NO.1
Control Panel with LCD Touch Screen
* Easy to operate;
* Switchable English and Chinese language, other language optional;
* Emergency stop, convenient and safe;NO.2
Electric Component
* Japan PONASONIC PLC;
* SCHNEIDERr electronic components;NO.3
Cartons hopper
* Length 1000 mm, width1000 mm, height 1000 mm tank;
* Set more than 100pcs cartons per time;
* Hopper size adjustable according to your carton size by hand wheel;NO.4
Screw drive
* For the hopper height, width and length depend on the carton size;
NO.5
Taiwan AIRTAC Pneumatic ComponentsNO.6
Vacuum pump suction cup system
* Adjustable height and width according to the carton sizeNO.7
Capable of interchanging 48mm,60mm,72mm tape head
* Optional tape width 48,60,72 mm depend on your requirements;
* With cutter shell to protect the hand when placing the tape;
* With hairbrush to smooth the tape on the carton, better looking packing performance;
NO.8
Side belt drive
With max.speed 20m/min;
Adjustable width depend on the carton case by manual;
4mm thickness, wear-resisting;
Gallary
Company ProfileEstablished in 2015 and located in seaside city of Qingdao, Qingdao Youchuang Packaging Equipment Co., Ltd. was specialized in the design, development and manufacturing of packaging machinery as well as automation packaging solutions.With the continuous growth, we can now offer more than 100 kinds of machines in 8 series including Pallet Wrapper, Shrink Wrapper, Strapper, Case Erector, Case Sealer, Vacuum Packing Machine, Palletizer and Conveyor System. Especially in the area of Shrink Wrapping, Pallet Handling and Timber Handling, we are experienced and knowledgeable to provide customization overall solutions to meet the various needs of customers.
All our machines have passed CE certification and benefit from our experienced engineer team, we have obtained a number of patented technologies in Shrink Wrapper and Conveyor System. Reply on our excellent product quality and service, we have won lots of customer in the market of North America, Europe, Australia etc.

---
