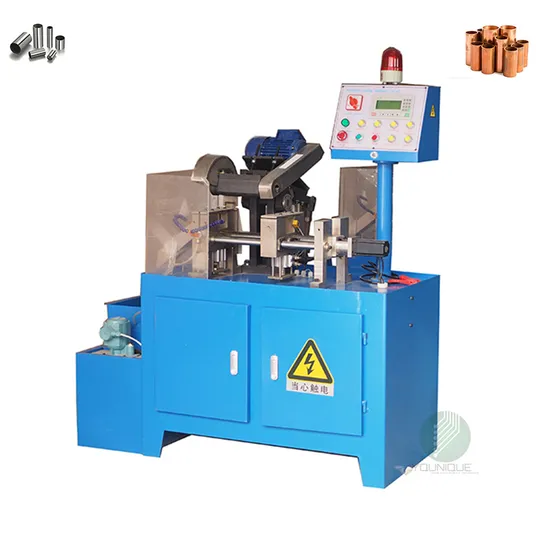

Q1 Tiny Copper Pipe Cutting Automatic Machine Small Pipe Cutting Machine

Product Description

Product Description Equipped with PLC computer control, the YE-Q1 automatic pipe cutting machine automatic feeding by servo motor. Various configuration possibilities allow for a variety of applications to be cut with length from 7 to 100 mm. An optimal combination of proven state-of-the-art components results in outstanding production rates.
Machinery main circuit is controlled by imported PLC computer, the operation is on simple, sensitive, easy maintenance. Servo motors is used to automatic feeding, precision lead screw, linear bearings, cutting accuracy ±0.03mm. Counters can be set the number of processing, automatic stop when it completely. Counters can be accumulated record of work a day. When the processing size changed, you only need to change the size in the text display to work, without manual positioning or hardware positioning. 2.Technical Parameters about YE-Q1 Automatic pipe cutting machine

Performance		Specifications
Cutting capacity	Ring pipe	∅40mm
	Rectangular pipe	60*40mm
	Rectangular rod	65*45mm
	Ring rod	∅50mm
Feed length		7mm-100mm without manual positioning
Feed speed		stepless adjustment
host motor		2.2 or 3kw,by the order 2.2 or 3kw
saw		∅100-200mm tungsten carbide saw blade
spindle speed		500-3200RPM or by the order 500-3200RPM
cooling		90w water mercury for cooling
compressed air		0.6mpa
machine dimensions		850*1600*1600mm
total weight		about 400kg

Technical Parameters Main Application
