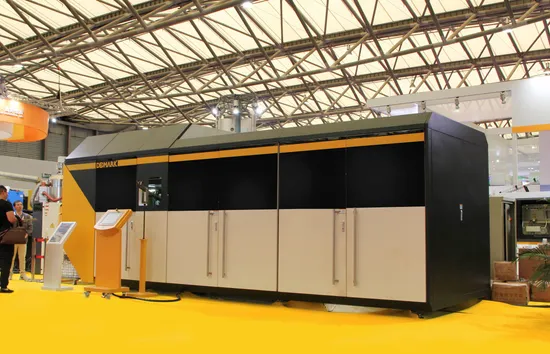

36000bph Automatic Pet Plastic Bottle Blow Molding / Blowing Moulding Machine for 200ml 250ml Plastic Bottle

Product Description

Product Description
A plastic blow molding machine is a manufacturing equipment that is used to produce plastic hollow objects such as bottles, containers, and tanks. The machine utilizes a process that involves melting plastic resin and then blowing it into a mold cavity. This results in a uniform, high-quality plastic product. The machine is computer-controlled, allowing for precise control of key parameters such as pressure, temperature, and cycle time. Advanced models come equipped with features such as automatic deflashing, leak detection, and quality control systems. Plastic blow molding machines are widely used in industries such as packaging, food and beverage, and automotive, and offer significant advantages such as high output rates, low costs, and design flexibility.
The range of plastic blow molding machines varies in size, capacity, and capability. Some machines are designed for small-scale production, while others are built for mass production. Typically, the range of plastic blow molding machines includes single or double-station machines, shuttle machines, extrusion blow molding machines, and injection blow molding machines.
Plastic blow molding machines can produce various plastic items, such as water bottles, shampoo bottles, detergent bottles, oil cans, and many more. The machines offer high precision and accuracy, enabling manufacturers to produce high-quality plastic products that meet the industry standards and regulatory requirements.
Additionally, this type of machine has sophisticated control panels to allow for easy operation and settings adjustments. Overall, an automatic PET bottle making machine has a vast application range and is highly efficient, producing high-quality plastic bottles for use in various industries.
Product Advantages
1. High Efficiency: Plastic molding machines are highly efficient and can produce large quantities of products in a short period of time.
2. Cost-effective: Plastic molding machines are cost-effective, especially when producing large quantities of products.
3. Consistency: The technology behind plastic molding ensures consistency in the products produced, which is important in industries where precision is required.
4. Versatility: Plastic molding machines can be used to produce a wide range of products, from small components to large automotive parts.
5. Reduced waste: Plastic molding machines have the ability to recycle scrap material, reducing waste and promoting sustainability.
6. Customization: Plastic molding machines can be customized according to specific industry needs, such as the production of medical devices or automotive parts.
7. Fast production: Plastic molding machines are able to produce products at a faster rate than traditional manufacturing processes.
8. Reduced labor costs: Automation and robotics have made plastic molding machines highly efficient, reducing the need for manual labor and overall labor costs.
9. High accuracy: The precision of plastic molding machines ensures that parts are produced to exact specifications.
Product Parameters

Parameters of the molding machine
Embryo bucket volume m3	TBD
Maximum bottle speed BPH	35000
Applicable bottle preform size mm	dia.25-dia.45 H<=190
Moter power(elevator + billet trimmer +...) kw	2.2
Voltage/frequency/phase	380V+/-10%/50Hz/three-phase five-wire
Bottle blowing machine and heating machine
Components	Item	Parameters
Blow bottle part	Mold (cavity) quantity	14
	Flask height (lower part of support ring)	1.5m
Heating part	Heating unit	16
	Infrared tube layer	9
Eectric parameter	Electrical voltage	380V
	Frequency	50/60Hz
Total installed power	Total power	200
Air source	The compressed air pressure	3.5-4.0MPa
	High pressure compressed air consumption	TBD
Heating machine cooling water (water temperature <=20ºC)	Presssure	5-7bar
	Flow
	Power
Mold cooling water (water temperature 5-12ºC)about mold	Pressure	5-7bar
	Flow
	Power
Mold cooling water (water temperature 5-12ºC) bottom mold	Pressure	5-7bar
	Flow
	Power
Weight	Main engine/heating machine/electric control box etc	15t
Equipment dimensions	Main machine(L×W×H)mm	4200*3200*3650
	Heating machine(L×W×H)mm	5480*1700*2210
	Billet sorting machine(L×W×H)mm	7020*5220*4500
Preform size	Preform height	≤150mm
	Inside diameter of preform	Φ14mm-Φ26mm
	The diameter of the supporting ring	Φ26mm-Φ40mm
Bottle size	The diameter of the round bottle	Φ50mm-Φ116mm
	Bottle size (diagonal)	50mm-116mm
	Height below the supporting ring	≤300mm
	Capacity range	0.2L-2.5L

---
