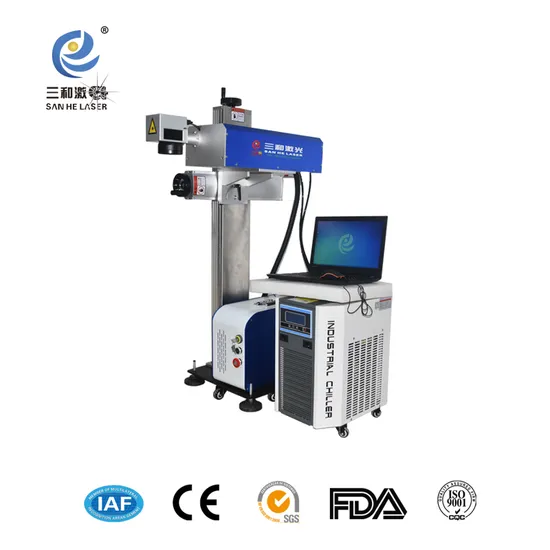

Advanced UV Laser Marking Machine No Pollution No Noise

US$15,000.00-18,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
3HE-UV3W
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
UV Laser Marking Machine
Laser Classification
Free Electron Laser
Type
YAG Laser Marking Machine
Marking Method
Scanning Marking
Model No.
3he-UV3w
Wavelength
355nm
Pulse Width(Ns)
<20ns@30kHz
Average Power Stability
<+(-)2%Over 8hour
Spatial Mode
Temoo(M2<1.3)
Certification
Ce, ISO 9001
Pulse Repetition Rate (kHz)
20-100
Average Power (W)
4.0-5.0@40kHz
Colling
Air-Cooling
Operating Voltage(V)
90-260
Transport Package
Carton
Specification
ce
Trademark
sanhe
Origin
Dongguan Guangdong
HS Code
8515809090
Production Capacity
200set/Month

Product Description


Product:
Parameters:
Machine model 3HE-UV3W/5W 3HE-UV8W
Wavelength(nm) 355
Pulse repetition rate(kHZ) 20-100 15-100
Pulse width(ns) <20ns@30khz <25ns@10khz
Average power(W) 2.0-3.0@30kHZ 4.0-5.0@30kHZ 7.0-8.0@30kHZ
Average power stability <±2% over 8 hours
Pulse-to-pulse instability <3%rms
Spatial mode TEM00(M2<1.3)
Beam divergence <2mrad (full angle)
Beam diameter 0.6±0.1mm
Beam roundness >90%
Pointing stability <50urad
Polarization direction Horizontal
Polarization ratio 100:1
Cooling Are cooling Water cooling
Ambient temperature(ºC) 15-30
Storage temperature(ºC) -15-50
Relative humidity 10%-80%(non-condensing)
Warm-up time <10
Operating voltage(V) 90-260

Samples:
What Can I Do
UV laser marking machine main used for all kinds of glass, Charger shells,TET ,LCD , plasma screens,
textiles,thin ceramic, Silicon, IC Crystal, Sapphire,polymers,drug, cosmetic,polymer materials such as wire,
bottles(boxes) surface marking , and micro-holes.
International Certifications

Clients visit:
Contact us:
-------------We are looking forward to cooperating with you ! ! ! ------------
