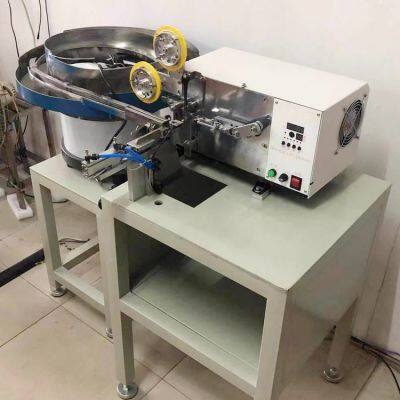

Transformer automatic tape wrapping machine
Transformer automatic glue wrapping machine Magnetic core tape wrapping machine Inductive coil adhesive tape machine
Feature description 1. Operation steps: put the material into the vibration barrel - automatic loading - automatic film wrapping - automatic material withdrawal.
2. Function: fully automatic protective film application, no manual operation required
Easy to operate, with tape change reminder function
3. Replace different jigs for different products, simple and quick debugging, can be completed in a short time,
Any vertical, horizontal transformer, USB shell, charger shell can be coated/filmed, and the replacement of varieties is simple and quick, suitable for various operations;
4. This machine adopts microcomputer program control and reduction motor transmission to ensure the stability of the machine during operation;
5. Intelligent control system: dual display window, A shows the number of turns required, B shows the output of the work (output can be cleared);
6. Tape error range: ±0.2mm error;
7. Two winding tape heads, interchangeable, can increase production;
8. The number of turns can be set, and the tape is automatically cut and processed;
9. The tension of the winding tape is adjustable, three-point and one-line parallel feeding, the winding tape is parallel, and the closing is consistent.
Purpose/Application Areas Huiyue fully automatic coating machine is used for various high and low frequency transformers, inductor coils, relays, filters, USB shells, charger shells, etc. Automatic coating/coating operations.
Model
| HY-B02
|
Membrane range
| 34mm - 77mm are applicable
|
Number of turns
| 1 - 9 turns, the number of turns can be arbitrarily set
|
Two-axis wheelbase
| diaphragm axis distance from 25mm - 85mm can be adjusted
|
Size
| L1100x W800x H1200mm
|
Material construction
| the main part of the use of S45C steel material; other A3 steel plating hard chromium
|
Optional function
| a. Automatic return material, easy to operate, improve efficiency (combined with product considerations);
b. Motor speed selection 7.5 or 10 (the smaller the number of the faster);
c. other functions (according to customer requirements);
|
Weight
| 45KG
|
>>
