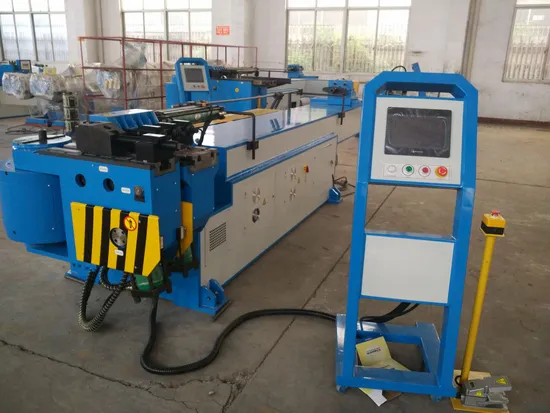

CNC Pipe Bending Machine Semi Automatic Pipe Tube Bending Machine

Product Description

The series was adapted in particular to professional world market requirements. All the parts, structure and characters are similar to the standard of mechanical engineering from Europe. Our professional experience and drawings plans for Electric, Electronic, Hydraulic and mechanical from known companies bring to upgrading of the machines' systems to accurate and attractive performance.
Full hydraulic drove, PLC controlled with touch screen pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.
Features:
1. Applicable tube material: Carbons steel, mild steel, soft steel, stainless steel, aluminum, alloy, copper, brass etc.
2. Applicable tube shape: Tube, solid bar, square, rectangle, oval, profile etc
3. Controlled through PLC and possesses manual, semi-automatic and full-automatic functions.
4. Equipped with hydraulic-operated clamping tube, encoder-controlled bending angle with precision more or less 0.1 degree.
5. About 200 programs can be inputted into PLC, then show on dialogue-style operation touch screen, easy to learn and understand.
6. Various Touch screen language are available for choice as per request.
7. Adoption of hydraulic valve and oil way board can control actions individually to prolong the lifespan of hydraulic parts.
8. Guiding module has auxiliary pushing function and at the same time it possesses reiteration and entering repeat functions that can make the guiding module length shorten.
9. Counter function can accurately count work piece's quantity and save data whether on power-on or power-off situation.
10. Auto lubrication system to protect components and improve the working life of machine;
11. Possess automatic error detection function and limit protecting function, removing or changing faults easily and quickly.
12. Moveable foot switch with function of auto-start, pause and emergent-shop, safe and convenient.
13. Optional function of core reversing slowly.
14. Optional function of slow bending.
15. Optional function of anticipated mandrel extraction.

Name	Unit	Parameter
Max. Bending Capacity	mm	89*12
Bending Radius Range	mm	40-400
Max. Bending Angle	°	190°
Though Effective Distance	mm	3200
Bending Speed	° /sec	25
Bending Precision	°	± 0.10
System Motor Power	KW	11
Oil Pump Delivery Volume	L	30
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	4500*1350*1200
Machine Weight	T	4.5

Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Siemens or Suzhou Runmali
Hydraulic Valve	Japan Yuken
Over Flow Valve	Japan Yuken
Encoder	Japan Nemicon
Hydraulic Pump	Wuxi Tuoli
Sealing Element	Shanghai Qifan
Contactor	Schneider
Over-Thermal Relay	Schneider
Proximity Switch	Omron
Power Switch	Taiwan Mingwei
Tansformer	Wuxi Xingyu
Oil Tube	Zhejiang Tongxin
Touch screen	Taiwan Weinview
PLC	Japan Mitsubishi

FAQ:
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: Wuxi Airport or Shanghai Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.

After Sales Service:
1. We provide manual book,detailed machine installation,commissioning video for help you correctly
operate machine.
2. We provide free installation,commissioning and training at our factory.If you need engineer go to
your factory for machine installation, air tickets,food,hotel,local transportation shoule be at your
account.
3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
Contact Person: Mr. Ronaldo Chen
