Automatic Colorful Toilet Tissue Paper Lamination Machine with Embossing

Product Description

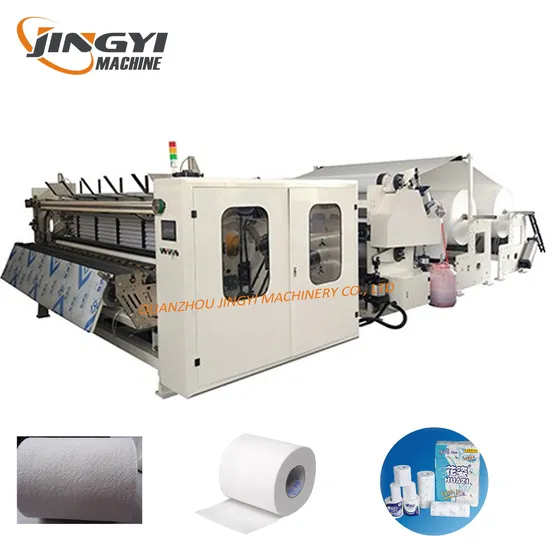

Automatic Colorful Toilet Tissue Paper Lamination Machine with Embossing
Equipment Description: This is an automatic rewinding machine for toilet paper and kitchen towel, with the function of roll core auto feeding, embossing, glue lamination, perforating, trim sealing and so on. Can also do kitchen towel with lamination unit, also can do with colorful lamination. This machine is designed and made according to CE certificate standard, with safety safety-guard door, emergency stop and other safety devices, to protect operators. With automatic roll core feeding unit, without manual roll core feeding, after rewinding will automaticly push out the log, and immediately rewind again. Can adjust the specification of the roll core easily. With international advanced PLC programmable controlling technical, man-machine interface operation table. The production data and technical parameters show on touch screen. With high precise perforation blades, lower noise, clearer perforation, can adjust the perforating distance with bigger range. Jumbo roll tension controlling system, Pneumatic lifting the jumbo roll; Can use the steel to steel embossing unit for point to point embossing rollers, make the paper softer, and double layers match well. This equipment is durable and wearable with simple operation and maintaining.
Main Technical Parameter:

Max jumbo roll width	1750mm (other size can be ordered) Can order from 1200mm to 3000mm
Max jumbo roll diameter	φ1100mm(for bigger size can be ordered)
Jumbo roll inner diameter	3inches (76.2mm)
Finished products diameter	φ80-150mm
Perforated distance	100-150mm (other size can be ordered)
Production speed	0~200m/min
Machine power	7.5~22kw (depends on machine model)
Roll core unit	With or without roll core
Jumbo roll stands	1~3 stands (standard is 2)
Embossing unit	Single embossing, double embossing (steel to rubber roller, steel to paper roller, steel to steel roller)
Jumbo roll loading	With air cylinder loading
Parameter setting	Man-machine interface operation, Touch screen
Machine overall dimension	3500*2500*1500~6000*3500*1500mm
Machine weight	1500~4500KG (approximately)
Remote controlling	Depends on customer
Lamination unit	Can be ordered
Colorful lamimation	Can be ordered

Contact Us: Quanzhou Jingyi Machinery Co.,ltd
Add: Jiangnan Street,Licheng District, Quanzhou,Fujian
Name: Fiona Hou

---
