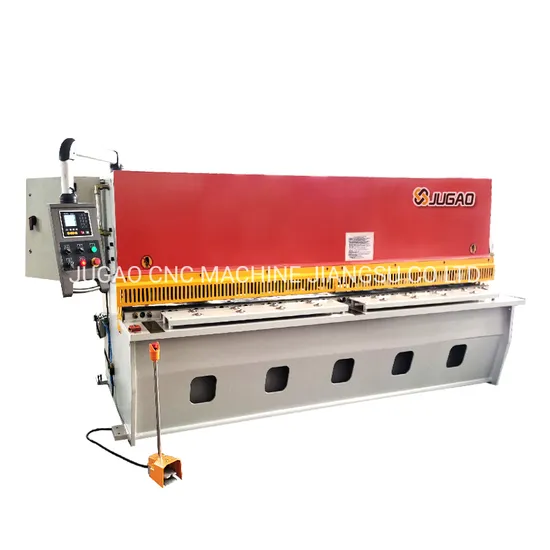

QC12y/K Metal Sheet Cutting Machine Shearing Machine with Pneumatic Support and Backgauge

US$3,500.00-18,000.00 1 Piece (MOQ)

Basic Info.

Warranty
1 Year
Name
QC12K CNC Swing Type Shearing Machine
Color
Optional Hydraulic Shearing Machine
Hydraulic System
Bosch Rexroth Germany
Sealing Rings
Volqua Japan
Electric Parts
Siemens & Schneider
Hydraulic Oil
46#
Shearing Plate Material Available
20-600mm
Controller
E21s
Stroke Number
Mild Steel, Stainless Steel, Aluminum Steel
Origin
China
Production Capacity
30set/Month

Product Description

QC12Y/K Metal Sheet Cutting Machine Shearing Machine With Pneumatic Support And Backgauge 1. Hydraulic transmission, pendulum-type tool holder. The overall welding of the frame is hard and durable, and the use of a nitrogen cylinder returns smoothly and rapidly.
2. It has the function of stepless adjustment stroke. The amount of upper and lower blade edge clearance is adjusted by the handle, and the gap of the blade is even and rapid.
3. NC control system and position encoder, inverter, closed-loop control system, speed, high positioning accuracy, good stability, can accurately ensure the accuracy of the back gauge displacement size, while the CNC system has precision compensation and automatic detection A variety of additional features.
Technical parameter
model Shear plate thickness Shearable plate width Number of trips Back gauge range Shear angle main motor power
mm mm min -1 mm ° kw
6×2500 6 2500 20-25 600 0.5-1.5 7.5
6×3200 6 3200 16-25 600 0.5-1.5 7.5
6×4000 6 4000 14-25 600 0.5-1.5 7.5
6×5000 6 5000 10-15 800 0.5-1.5 7.5
6×6000 6 6000 10-15 800 0.5-1.5 11
8×2500 8 2500 18-25 600 0.5-1.5 11
8×3200 8 3200 16-25 600 0.5-1.5 11
8×4000 8 4000 12-25 600 0.5-1.5 11
12×2500 12 2500 12-20 600 0.5-2 15
12×3200 12 3200 12-20 600 0.5-2 15
12×4000 12 4000 12-20 600 0.5-2 15
16×2500 16 2500 10-15 800 0.5-2.5 18.5
16×3200 16 3200 10-15 800 0.5-2.5 18.5
16×4000 16 4000 8-15 800 0.5-2.5 18.5
20×2500 20 2500 8-12 800 0.5-2.5 30
20×4000 20 4000 8-12 800 0.5-2.5 30
25×2500 25 2500 6-10 800 0.5-3.5 37
25×3200 25 3200 6-10 800 0.5-3.5 37
25×4000 25 4000 6-10 1000 0.5-3.5 37
32×2500 32 2500 6-8 1000 0.5-3.5 45
32×3200 32 3200 6-8 1000 0.5-3.5 45
