Airplane Airport Airline Aircraft Inflight Lifting Food Service Catering Truck

US$120,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CM-CV-1
Origin
China
Production Capacity
300set/Year

Packaging & Delivery

Package Size
600.00cm * 350.00cm * 290.00cm
Package Gross Weight
9000.000kg

Product Description

Product Description
Product Description

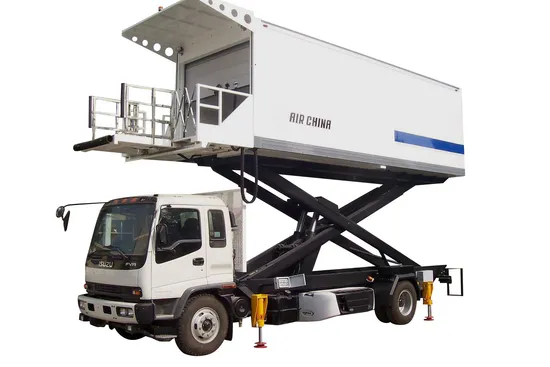

Our product built to serve for both narrow and wide body aircraft with doorsill heights ranging from 2700mm up to 6100mm. It is self containing unit with truck mounted and necessary provision for lifting and lowering of the van-body by hydraulical scissor mechanism. During lifting and loading process it is stabilized through stabilizer jacks that are completely welded to the Hi-Lift frame. The unit is designed to interface easily and promptly with aircraft galley door, while providing the maximum safety to the personnel and protection to the aircrafts structure. Product Parameters
Specification
AIRCRAFT CATERING VEHICLES
Model CM-CV-1
Overall Dimension (LxWxH): 385" x 102" x 153" (9800x2590x3900mm)
Height of Platform 106" - 232" (2700mm-5900mm)
Max. Load capacity of Van body 8800lbs (4000kg)
Dimension of Van body (LxWxH) 283" x 97" x 95" (7200x2480x2400mm)
Detailed Photos
Product Picture
Safety Protection 1. Safety interlock mounted on each hydraulic.
2. Limit switch ensures the interface between platform and aircraft
3. Warning buzzer alarms when van body & stabilizers are operated.
4. Emergency DC pump will be operated during engine or main pump failure.
5. Manual hand pump will be operated during total power failure.
6. Stop push buttons of engine are available out cab and van body control panel.
7. Warning lights in cab to indicate stabilizer
8. Hydraulic pressure switch prevents van from raising unless stabilizers are down
Why choose us
1. We supply high quality products with reasonable price.
2. We are the professional manufacturer;
3. Advanced Production machine;
4. Strict quality control system;
5. Ten people research&develop team;
6. We have professional sales team;
7. Experienced exporting for all over the world;
8. We supply one-step solution service.
