Outdoor Full Color P3.91/P4.81 500mm*1000mm Waterproof LED Cabinet

Product Description

Product Description

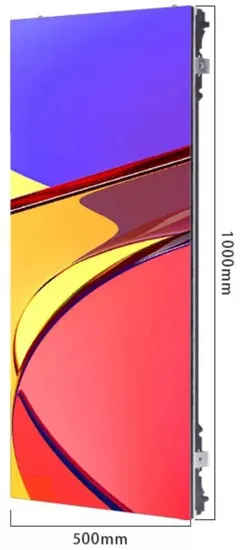

Cabinet Picture

Product Feature

Product Parameters

Parameters	P4.81	P3.91
Pixel Structure	SMD1921 3 in 1 LED	SMD1415 3 in 1 LED
Pixel Pitch(mm)	4.81mm	3.91mm
Cabinet Module Composition(W×H)	2 x 2	2 x 2
Cabinet Definition(W×H)	104 x 104	128 × 128
Cabinet Size(mm)(W×H×D)	500 (W)× 1000 (H)× 71 (D)	500 (W)× 1000 (H)× 71 (D)
Cabinet Area(m²)	0.25m²	0.25m²
Cabinet Weight(KG)	8KG	6KG
Cabinet Pixel Density(Pixel/m²)	43264	65536
Maintenance Method	Maintained from the Front / Behind	Maintained from the Front / Behind
Cabinet Material	Die Casting Aluminum	Die Casting Aluminum
Average Lifetime(hrs)	100,000H	100,000H
Working Temperature/Humidity(ºC/RH)	-10-40 / 10%-70%RH (No Condensation)	10-40 / 10%-70%RH (No Condensation)
Storage Temperature/Humidity(ºC/RH)	-20-60 / 10%-80%RH (No Condensation)	-20-60 / 10%-80%RH (No Condensation)
Applied Standards	CCC,CE,RoHS,CTL	CCC,CE,RoHS,CTL
Brightness	>4000cd/m²	>4000cd/m²
Waterproof Rating	IP65	IP65
Summit Power Dissipation(W/m²)	800W/m²	1600W/m²
Average Power Dissipation(W/m²)	400W/m²	450W/m²
Power Supply Requirements	AC220V, Frequency 46-54(Hz)	AC220V, Frequency 47-63(Hz)
Safety Certifications	GB4793	GB4793

Work Process
LED Display Case

Packaging & Delivery
Company Profile
We have excellent research and development department and independent design ability. Our main products include indoor full color led display screen, led display, outdoor full-color led to wireless car use screen, etc. Can be used for shopping, banking, bus station, railway stations, urban centers, airports, schools, factories, buses, taxis, and so on. We have many methods and excellent after-sell service to sell our products all over the world. We are a strong and lasting company that has survived in this industry for over 11 years. We have many prestigious projects finished in many countries, including America, England, France, Germany, Turkey, UAE, KSA, Pakistan, Russia, etc. Therefore, we have many experiences in exporting.
Our Workshop
Our Certifications
Trade Terms
1) Payment: T/T, usually 30% prepayment before production, 70% balance to be paid before delivery, it also changes according to the total quantity
2) Production lead timeless 20sqm:7-15 days, more than 50 sqm:30 days
3) Sample can be delivered in 30 days
4) Shipping port: Shenzhen, Mainland China
5) Discounts are offered based on order quantities
6) MOQ:1sqm/1pcs
Our service
1) Your inquiry related to our products or prices will be replied to within 24 hrs.
2) Well-trained and experienced staff to answer all your enquires in fluent English.
3) OEM&ODM, any your customized screen we can help you to design and put into product.
4) Distributorships are offered for your unique design and some of our current models.
5) Protection of your sales area, ideas of design, and all your private information.
1. Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure, and so on.
2. Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day, Or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
3. Service after sales:
If you have any questions about our product, you can inform us by mail or call, and we will reply to you in 24 hours when we get you an E-mail or call, and offer you a good solution for your problem

---
