Customized 3/4/5 Axis Vertical Machining Center for Metal Cutting

Product Description

Main Features

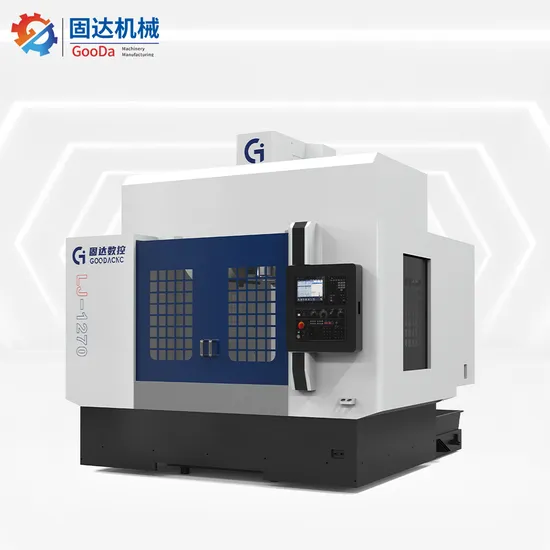

GooDa Vertical Machining Center with Dual Tool Magazine LJ-1270B-2T:
Crafted with a sophisticated design, it boasts the versatility of two linear and one hard rail or the option of three linear rails, seamlessly integrated with a dual tool magazine operation.
This powerhouse not only excels in high-efficiency machining of standard panel components, but is also meticulously engineered to tackle the intricacies of machining complex workpieces with unmatched precision.
Main Functions
- Multi fixtures for small-batch machining, ensuring flexibility and precision.
- Dual tool magazine with an impressive capacity of 64 tools for relentless efficiency.
- Equipped with THK linear rails and ball screws, guaranteeing smooth and accurate transitions.
- Anti-collision tool setter for enhanced safety and reliability.
- Dual tool magazine and multi fixtures for versatile functionality.
- Seamless, programming-free tandem operation for user-friendly experience.
- Quick clamping mechanism for swift and secure adjustments.
- Engineered for high efficiency and remarkable speed.
- Features a renowned Taiwan brand spindle for superior performance.

Product Parameters

Model	LJ-1270B-2T
Category	Attribute	Value	Unit
Worktable	Worktable Size	1300×700	mm
	Max load capacity	800	kg
	Number of T-slots - Slot Width × Spacing	5 slots - 18×100	mm
Travel	Three-axis Travel (X/Y/Z)	1200/700/680	mm
	Spindle Nose to Table Distance	120~820	mm
Spindle	Spindle Taper	BT40#	-
	Spindle Motor Power	7.5/11	Kw
	Spindle Drive Method	Belt Drive (Optional: Direct Drive)	-
	Max Spindle Speed	8000 (Optional Direct Drive: 12000)	rpm
Feed	Rapid Traverse Speed (X/Y/Z)	24/24/16	mm
	Cutting Speed (X/Y/Z)	1~12000	mm/min
Tool Magazine	Number of Tools	2×32T Robot Arm	T
	Max Tool Weight	8	kg
Accuracy	Positioning Accuracy (X/Y/Z)	±0.005/300	mm
	Repeat Positioning Accuracy (X/Y/Z)	±0.003/300	mm
Other	Electrical Capacity	25	KVA
	Overall Dimensions (L×W×H)	3.1×3.0×3.0	m
	Weight (Approx.)	7000	kg

Our dedicated team of experts stands ready to guide you in selecting the most suitable machine for your unique processing requirements. Get Expert Assistance Now! Examples of Processed Parts
Quality Control
Roughness measurement of table surface using a state-of-the-art roughness tester.
Spindle dynamic balancing test ensures impeccable processing accuracy and performance.
Spindle pull force testing to precisely measure spindle tension and ensure optimal operation.
All machines must pass a rigorous coordinate measuring machine (CMM) inspection before leaving the factory, ensuring the highest standards of quality and precision.
Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.

---
