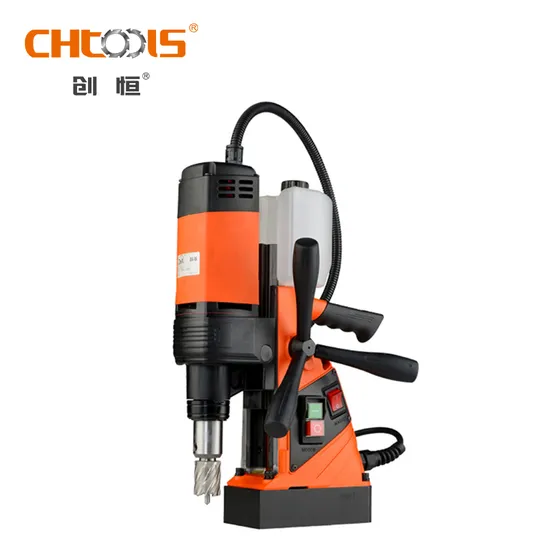

Chtools Core Drill 35mm Drill Press Magnetic Base Drill Machine

Product Description

Product Type	DX-35
Motor rated power	1100W
Load speed	450rpm
Tool holder	19.05mm (3/4")
Magnetic adhesion	10000N
The max cutter capacity	35mm (1-3/8")
The max cutting depth	50mm (2")
The max diameter of twist drill	13mm
The min cutter depth	10mm
Stroke	120mm
Motor can adjust the height to	95mm
Magnetic drill machine dimension	275*190*400mm
Magnetic base size	167*84*44mm
Total weight	11.0kg
Countersunk drilling	10-35mm

Zhejiang Xinxing Tools Co., Ltd. established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. Drafting unit for Chinese industrial standard of annular cutter.
Our products include high efficiency energy saving annular cutter series that won the single industry
champion, and rail cutter, hole saw, and self-developed magnetic drilling machine series.
In addition, a series of high-precision tools, spade drill, BTA deep hole drill, S drills, and milling cutter have been added.
The company has modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, From raw material testing, blanking, rough processing, heat treatment, finishing processing to finished product inspection and testing, and all the production processes are completed by our own factory. For you, which means: The most reliable products supply and the fastest delivery time.
After many years of technological innovation and development, the company has more than 110 core independent intellectual property rights patents, including 10 invention patents. The company implements a strict quality management system and has successively passed the ISO9001 quality system certification and the ISO14001 environmental system certification.
In the future, CHTOOLS will devote to become a leading international cutting tool manufacturer, provide you with more effective and better services, become your trusted tool supplier. Production process
