Online Single Phase UPS Real-Time Dual Conversion Pure Sine Wave Output

Product Description

Production description

1. Online ups style
2. Built-in toroidal transformer with high efficiency and low static power consumption.
3.A short circuit protection setting in the output,so no need to worry about damaging the machine due to misoperation.
4. The output voltage,the number of battery voltage sections and the charging current are adjustable.
5. With battery over-discharge protection and battery over-charge protection.
6. Using design,computer interface,with self-detection function.
7. Super filter function,easy to solve the interference

Production Parameters

Models		SP1K(S)	SP2K(S)	SP3K(S)	SP6K(S)	SP10K(S)
Phase		Single-phase ( three phase can customized)
Capacity		1kva 900W	2kva 1800W	3kva 2700W	6kva 5400W	10kva 9000W
Input
Voltage range		110-300VAC
Frequency range		50HZ/60HZ
Power factor		0.9
Output
Outut voltage		220VAC+1% ;110VAC+1%Optional
Frequency range (battery mode)		50 Hz (60HZ selectable)+0.25 Hz
Transfer time		0ms
Wave Form		Pure sine wave
Battery
Standard	Battery model	12V/7AH (Standard) , 12V/9AH(Optional)
carrying	Battery quantity	2	4	6	16	16
Battery	Max charging current	1.0A
	Charge to full	4 hours	6 hours	6 hours	9 hours	9 hours
Long-run Battery model		Depends on the users
LCD or LED display		Load size,battery capacity,mains mode,battery mode,bypass mode,fault indication
Control Management		USB / RS-232 , SNMP optional

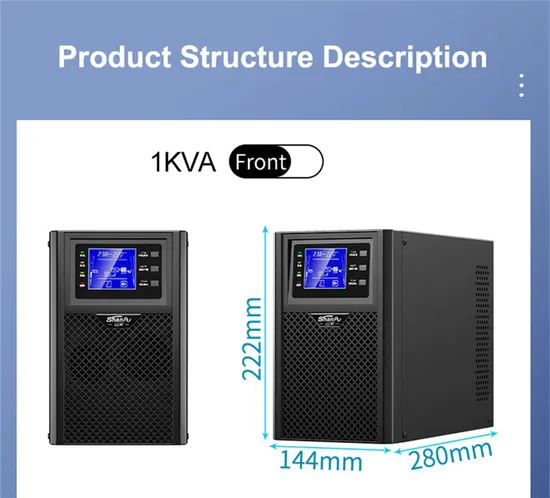

Production Picture

Production Applications

1. PC computer , Printer , Exchanger
2. POS cash register , ATM machine , Camera monitoring
3. Precision devices , Server , Hospital equipment
4. Can be used for commercial field , home , office , data center
5. Precision instruments , emergency power supply and etc.

Production Details

Certifications

Client Feedback

Exhibitions

Company Profile

Shanpu Technology Co., Ltd. is an excellent technology company that specializes in the development, production, and sales of high-quality ups power supply. Our company has 20 years experience and has grown to become a well-respected brand in the ups industry. We provide OEM, ODM and advanced customization services to over 50 countries ,35,000 customers, We are committed to providing our customers with the high quality products that meet their specific needs.
Our main products include UPS uninterruptible power supply, solar inverter, UPS battery , outdoor power station and mini ups power, widely used in finance, education, telecommunications, automotive, medical,manufacturing and other industries. We offer after-sales support to ensure that our customers are completely satisfied with their purchases.industries.Shanpu provides a safe and reliable power environment for many users

Packing & Shipping

FAQ

Q1: Why to choose us?
---More than 20 years UPS factory experiences ---Professional sales team and R & D team ---Qualified product and competitive price ---Delivery in time ---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2 years warranty and 1% sapre parts for free ---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,CE,ROHS,and so on ---All series UPS pass different labor testing according to different countries' requirements.
Q4: Delivery time:
---Standard products could be delivered within 7 days;
Q5. Can I have a sample order? A. Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ? A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q7. Do you support OEM? A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

---
