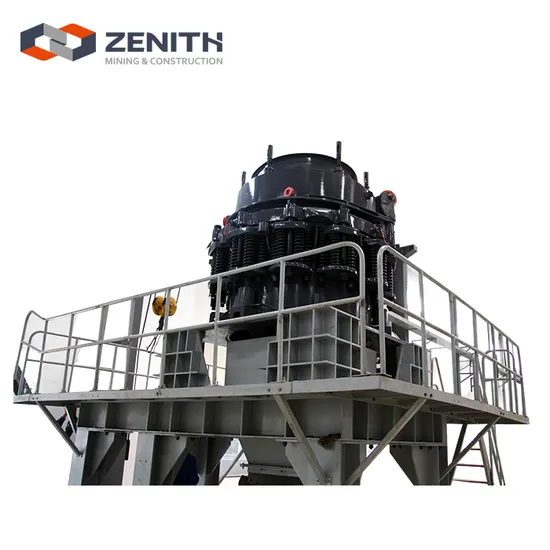

Rock Spring Cone Crushing Machine Stone Cone Crusher Plant

Product Description

Rock Spring Cone Crushing Machine Stone Cone Crusher Plant

Spring cone crusher and HP cone crusher is suitable to crush all kinds of ores and rocks with medium hardness and above. It has features of reliable structure, high efficiency, high capacity, low operating cost, easy adjustment, economical to use and soon. Spring system plays the role of overload protection, which will enable the exotic materials or steel piece to pass through the crushing chamber without any damage to the machine. It adopts grease seal to isolate dust and lubricants, therefore ensure its reliable operation. According to customer demand, respectively, using standard type, medium type and short head type for coarse crushing, medium crushing and fine crushing operation.

Rock Spring Cone Crushing Machine Stone Cone Crusher Plant Working Principle:

During operation, the motor drives the eccentric shaft shell to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.

Rock Spring Cone Crushing Machine Stone Cone Crusher Plant Features:

1.Reasonable design, low consumption;
2.Manifold crushing cavity, flexible application
3.Hydraulic pressure cavity clearing, high autoimmunization and less stop production and repairing time.
4.Spring insurance protection system
5.Laminated crushing, better finished product shape
6.Adoption of grease sealing increases the service life
7.High efficiency, high handling capacity.

Rock Spring Cone Crushing Machine Stone Cone Crusher Plant Applications:

This kind of Spring Cone Crusher can be extensively used in metallurgical industry, building industry, road construction industry, chemical industry, diluted hydrochloric acid industry and are suitable for crushing hard and mid-hard ores and rocks, such as iron ore, copper ore, lime stone, quartz, granite and sandstone.
Spring Cone Crusher Specification Chart In Open Circuit (STANDARD):

Model	Cavity	Recommended Minimum Discharge Setting A (mm)	Feed Opening With Min.Recommended Discharge Setting A(mm)		Capacities In Tons Per Hour Passing Through The Crusher At Indicated Discharge	Power(KW)
			Opening Side"B"	Closed Side"B"
36" (3')	Fine	9	102	83	45-93	75
	Coarse	13	175	159	59-165
	Extra Coarse	25	178	163	129-198
51" ( 4.25' )	Fine	13	137	109	106-183	185
	Medium	16	210	188	132-304
	Coarse	19	241	216	171-349
	Extra Coarse	25	259	238	230-450
66" ( 5.5' )	Fine	15	209	188	180-324	240
	Medium	22	241	213	252-437
	Coarse	25	269	241	299-634
	Extra Coarse	38	368	331	431-680
84" ( 7' )	Fine	19	278	253	381-1028	400
	Medium	25	334	303	605-1284
	Coarse	31	369	334	786-1450
	Extra Coarse	38	460	425	886-1637

---
