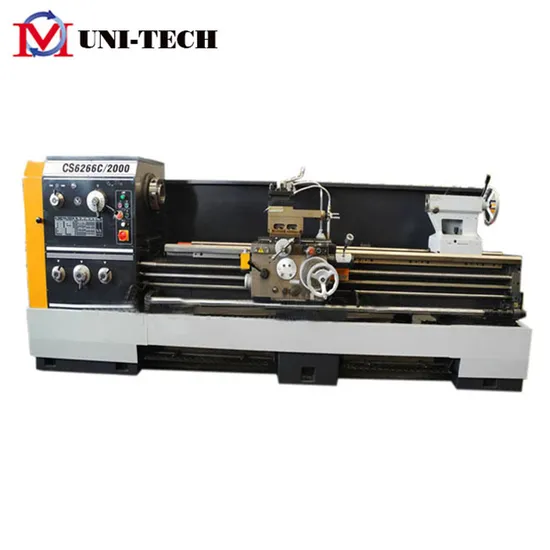

China High Precision Horizontal Tornos Metal Manual Lathe Machine (CS6266C)

Product Description

China High Precision Horizontal Tornos Metal Manual Lathe Machine (CS6266C)
CS6266C Lathe machine Feature:
High quality casting body
Precision ball screws
Hardened and ground bed way coated
Specifications
High precision,
High spindle speed with 24 speeds changes.
Ground gear and kinetic-balanced spindle runs smoothly with low n
Features
High precision, high spindle speed with 24 speeds changes.
Ground gear and kinetic-balanced spindle runs smoothly with low noise.
Camlock spindle nose, easy to clamp.
Big thru-bore of spindle to hold bar stock with large diameter.
Big swing over bed suitable for hold special shaped workpiece and dishlike workpiece with large diameter.
High grade casting bed, hardened and precision ground guideways.
Left-handwheel apron and right-handwheel apron are available for users to choose. Each of them equipped with a quick travel device and an easy operated level.
Three-axis sliding mechanism in feed box, giving big feeds and threads ranges. Quick and easy speeds and threading changes.
Tailstock spindle can move at two speeds. Drilling is very easy. The scale on the handwheel indicates the distance the spindle moves.
On user's request, the following accessories are available: Foot brake, taper turning attachment, thread chasing dia (metric or inch), mechanical stop divice quick-change tool post, centralization lubrication device and cross feed quick-release lever.

Model No.	C6266C
Specifications
Distance between centers	1000/1500/2000/3000 mm
Swing over bed	660 mm
Swing over carriage	420 mm
Swing over gap	870 mm
Bed width	405 mm
Spindle bore	105 mm
Taper of spindle bore	113 mm 1:20
Spindle nose	D1-8
Step of spindle speeds	12
Range of spindle speeds	36-1600 rpm
Range of cross feeds	0.027-1.07 mm/r
Range of longitudinal feeds	0.063-2.52 mm/r
Range of inch threads	28-2 T.P.I/25
Range of metric threads	1-14 mm/22
Range of moduler threads	0.5-7 mm/18
Range of diametrical threads	4-56 D.P./24
Rapid feed of cross traverse	1.9 m/min.
Rapid feed of longitudinal traverse	4.5 m/min.
Top slide travel	145 mm
Cross slide travel	310 mm
Max. size of tool (WxH)	25X25 mm
Tailstock quill diameter	75mm
Tailstock quill travel	150mm
Taper of tailstock quill	MT5
Motor	7.5 kw
Packing size	2500/3000/3500/4500x1100x1650 mm
Net weight	3000/3200/3400/3900 kg

Standard Accessories	Optional Accessories
3-jaw chuck (325mm)	Quick change tool post
4-jaw chuck (400mm)	Turning tools
Face plate	Leadscrew cover
Steady rest	Chuck guard
Follow rest	Tool post cover
Splash guard	Digital readout system
Stand	Taper turning attachment
Halogen work lamp	One piece casting stand
Toolbox & tools
Coolant system
Foot brake
Five position carriage stop

---
