US$22,000.00-35,000.00
|
1 set
(MOQ)
|
Basic Info.
Product Type
Extrusion Molding Machine
Assembly Structure
Separate Type Extruder
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Machine Output
150-250 Kg /H
Inverter Brand
ABB / Delta
Specification
25*1.5*3.5m
Packaging & Delivery
Package Size
150.00cm * 150.00cm * 250.00cm
Package Gross Weight
6500.000kg
Product Description

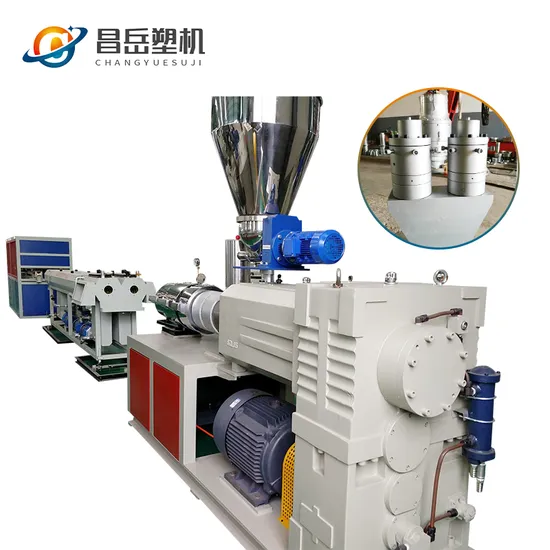

PVC pipe production line / PVC tube making machine
Description of PVC pipe makign machine
PVC pipe extruder machine/UPVC pipe making machine is mainly used in the manufacturer of the UPVC and PVC pipes with various tube diameters and wall thickness such as agricultural and constructional plumbing, water supply and drain etc. This set is composed of conical twin-screw extruder,vacuum calibration tank, hual-off machine,cutter, stacker etc.
Our machine can produce the PVC pipe with diameter from 16-630mm.
Main parameter of PVC pipe making machine
| Model | pipe range(mm) | extruders | max.speed(m/min) | total power(kw) | max.output(kg/h) | line length(m) |
| PVC-50*2 | 16-50 | SJSZ51/105 | 6 | 60 | 150 | 20 |
| PVC-63 | 16-63 | SJSZ45/90 | 10 | 45 | 120 | 20 |
| PVC-110 | 50-110 | SJSZ51/105 | 6 | 60 | 150 | 24 |
| PVC-160 | 63-160 | SJSZ65/132 | 5 | 100 | 300 | 24 |
| PVC-250 | 110-250 | SJSZ80/156 | 3.5 | 120 | 400 | 28 |
| PVC-315 | 160-315 | SJSZ80/156 | 3 | 160 | 400 | 36 |
| PVC-450 | 250-450 | SJSZ92/188 | 1.5 | 200 | 700 | 36 |
| PVC-630 | 315-630 | SJSZ92/188 | 0.9 | 230 | 700 | 36 |
Machine details
Our customer&exhibition
our workshop
>>
