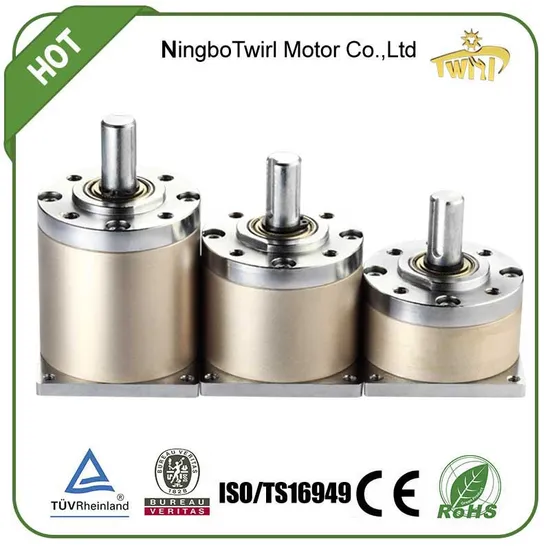

Good Price High Torque Low Rmp 56mm Small Planetary Gearbox

Product Description

good price high torque low rmp 56mm small planetary gearbox Product Category
China manufacturer gear motor price With Professional Technical Support
We always provide customers with distinctive products:cost-effective, lower
noise, higher efficiency and stability, longer life and higher strength.

Basic information
Product name	PG56series,56mm diameter planet gearbox
Motor type	carbon-brush commutator
Gear type	Straight gearwheel,planet construction
Housing material	Steel
Geartrain material	Steel and Powdered Metal,POM optional
Bearing at output shaft	Sleeve bearing
Lubricant	Grease for high-low temperature, -62---+204 degree
Backlash at no-load	<1°,MIN0.3°
OEM & ODM Service	Available
Certificate	CE,ROHS,ISO/TS16949

An exact model of gearbox and motor combination
Product seires	PG56 series gearbox
An exact Model NO.	PG56-198K
Motor Voltage(VDC)	24
Motor no load speed(rpm)	6000
Gearbox reduction ratio	198K
Gearmotor no load current(A)	<0.039
Gearmotor no load speed(rpm)	29+/-10%
Gearmotor rated load torque(kgf.cm)	6.3
Gearmotor rated current(A)	<0.194
Gearmotor rated load speed(rpm)	24+/-10%
Noise (DB)	<55DB
Lifetime	1000+ hours (varies by application)
Rotation	CW/CCW reversible

Packing&Shiping
Company Information
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: Can you make a motor with custom specifications?
A: Yes, actually that is what we do most of the time.
Q: What is the MOQ (minimum order quantity)?
A: 1 pc for sample order, and 100pcs for bulk order.
Q: Do you have motors in stock?
A: No, we don't. All motors are made with orders.
Q: How to pay you?
Paypal, Western Union, Money Gram, T/T, L/C payment are acceptable.
Q: What do you need to know if I need a recommendation on motor?
A: Normally we need to know dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e.
a motor with diameter 37mm, 12V, 100rpm and 2Kgf.cm at load.
Q: Can I ask you for help if I know nothing about motor?
A: Yes, our pleasure. We are nice people with big hearts.
Q: Can we type our brand on it?
A: Yes of course.
Q: Where is your loading port ?
A: Ningbo Port, Shanghai Port, China.
Q: What is your production capacity?
A: About 4000 PCS per day.
Q: Can I visit your factory?
A: Yes,of course
